Macurco (CM-E1-RF) Cm-e1 round flush mount carbon monoxide gas detector for use with fire alarm/burglary control panels, 9-32vdc

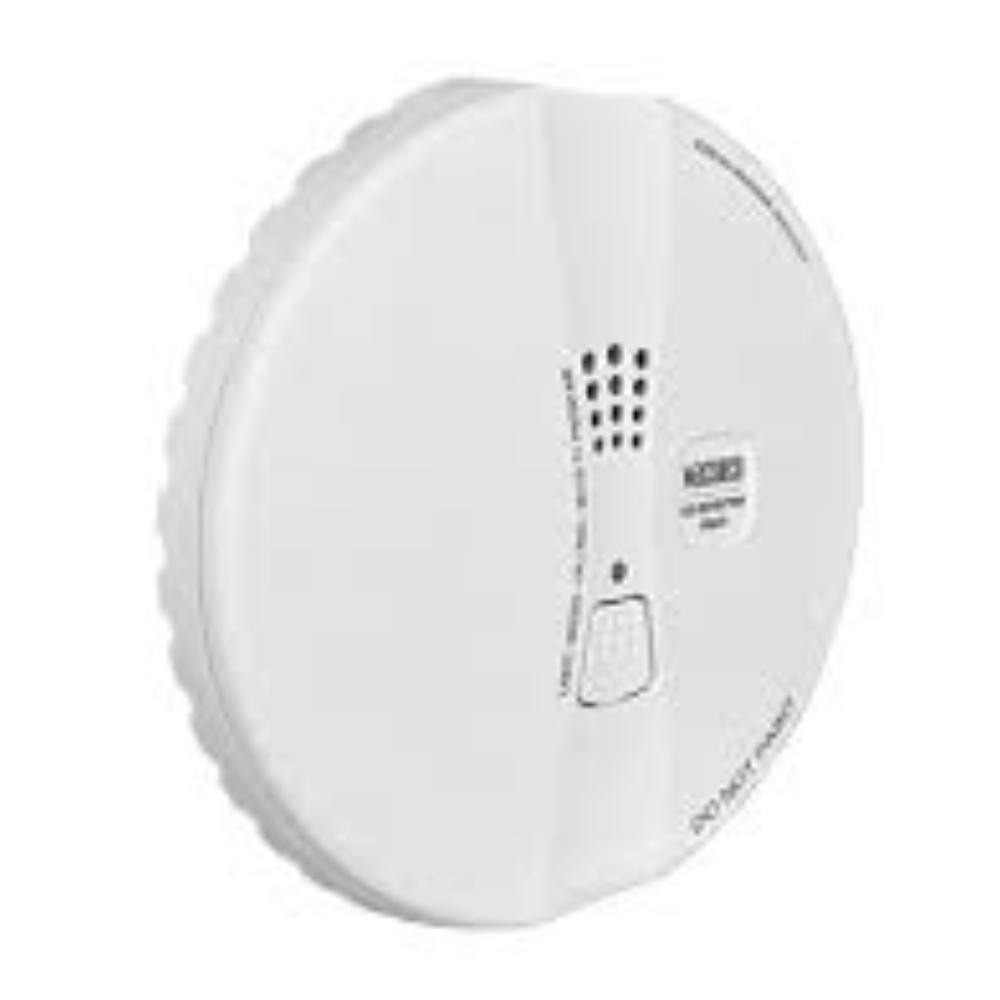

The Macurco CM-E1-RF is a round, flush-mount carbon monoxide detector. Specifically, it installs into a standard 2×4 single-gang switch box. As a result, the round faceplate sits flat against the wall for a clean finish.

First, the CM-E1-RF protects residential, multi-family, and commercial office spaces. Then, it ties directly into fire alarm or burglary control panels via dry-contact relays. In addition, it can stand alone as a local CO alarm.

Macurco CM-E1-RF coverage and sensing

The CM-E1 platform uses a 10-year electrochemical CO sensor. Therefore, drift stays low across the listed life of the cell. Also, coverage reaches 900 square feet per unit, per Macurco’s product page.

Verified specifications

• Input power: 9–32 VDC
• Sensor: electrochemical, 10-year service life
• Alarm relay: SPST, field-selectable N.O. or N.C.
• Trouble / supervisory relay: SPST, N.C.
• Local buzzer: 85 dBA at 10 ft, repeating alarm tone
• Operating temperature: 40°F to 100°F
• Coverage area: 900 sq ft
• Mounting: 2×4 single-gang flush box
• Listing: UL 2075; CSFM approved

Wiring notes

First, connect 9–32 VDC to the input terminals. Then, wire the alarm and trouble relays into the host panel’s input or zone. Finally, follow the CM-E1 manual for end-of-line resistor placement and supervision wiring.

Furthermore, the CM-E1-RF is the flush-mount variant of the CM-E1 family. Alternatively, choose CM-E1 (rectangle) or CM-E1-RS (round surface) for different installations.
