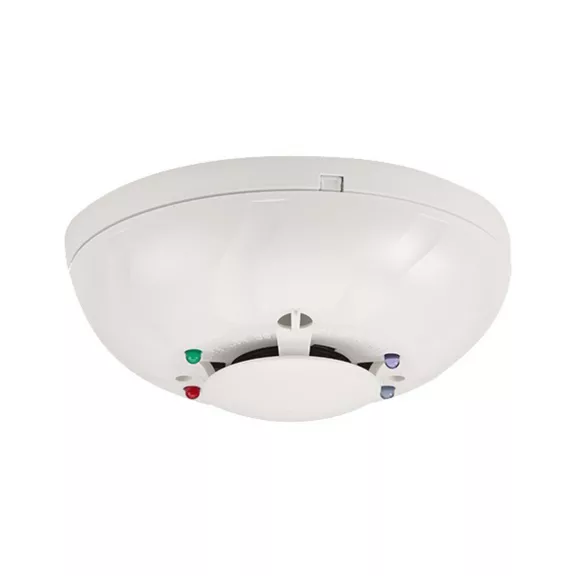

The System Sensor COSMO-4W represents advanced multi-criteria detection technology designed for comprehensive fire and carbon monoxide protection in commercial and institutional environments. This 4-wire photoelectric smoke and CO detector integrates sophisticated sensing capabilities into a single, compact device, enabling precise environmental monitoring for facilities ranging from office complexes and healthcare facilities to educational institutions and industrial settings.
Engineered for seamless compatibility with addressable fire alarm control panels, the COSMO-4W delivers robust performance through its innovative dual-sensing technology. The detector utilizes state-of-the-art photoelectric sensing principles combined with electrochemical carbon monoxide detection, providing superior early warning capabilities across diverse environmental conditions. Its intelligent design allows for nuanced discrimination between actual fire events and benign environmental fluctuations, minimizing false alarm potential.
Key Features
- Dual-criteria detection: Simultaneous photoelectric smoke and carbon monoxide sensing
- Compatible with 4-wire addressable fire alarm communication protocols
- Advanced drift compensation algorithm for consistent long-term performance
- User-replaceable CO sensor module with extended operational lifespan
- Low-profile design supporting discrete mounting in suspended ceilings and architectural spaces
- Compatible with multiple System Sensor interface modules for flexible system integration
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: < 300 µA
- Alarm Current: 5-7 mA
- Temperature Range: 32°F to 100°F (0°C to 38°C)
- Humidity Range: 10% to 93% non-condensing
Certified to rigorous industry standards including UL 268 for smoke detection, UL 464 for audible signaling devices, and compliant with NFPA 72 National Fire Alarm and Signaling Code requirements. Ideal for integration with commercial fire alarm systems, HVAC monitoring networks, and sophisticated building management platforms.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 7 × 3 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Photoelectric Smoke Detector |
