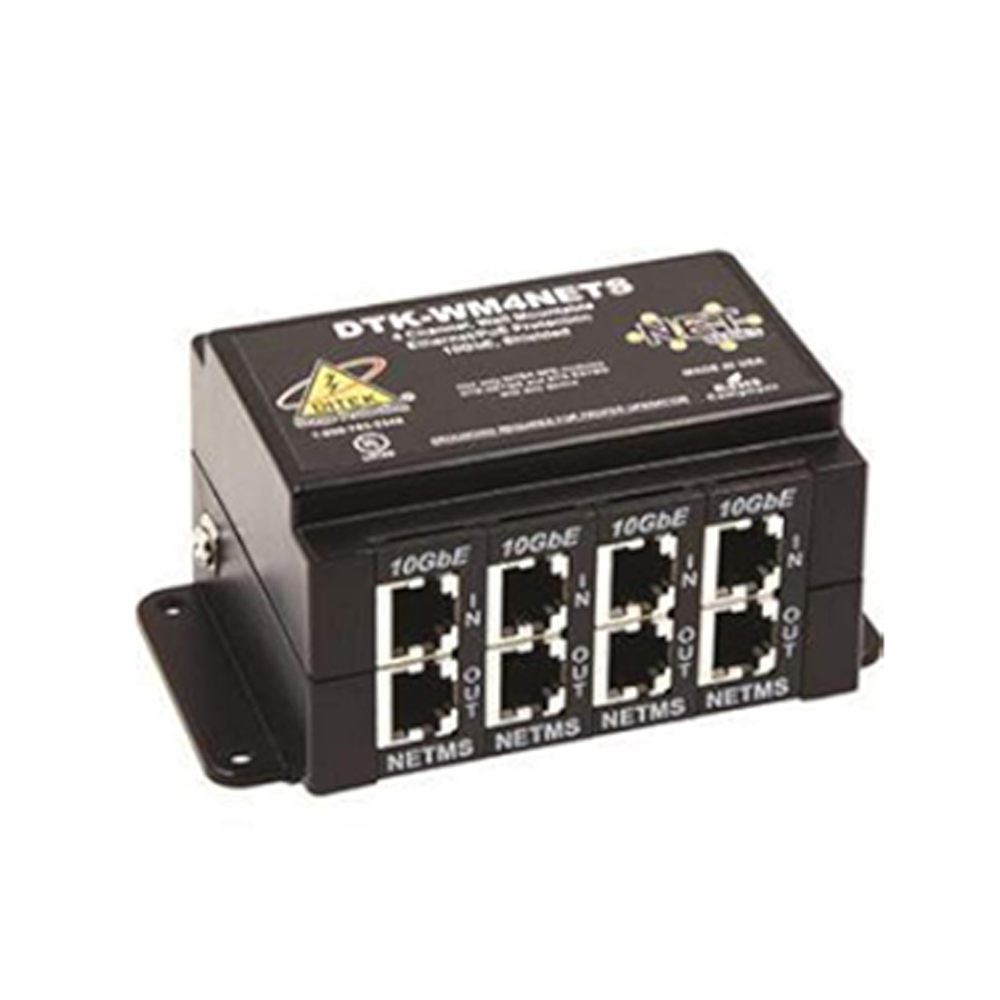

The Ditek DTK-WM4NETS is a 4-channel wall-mount surge protector for shielded Ethernet and PoE circuits. Specifically, it protects four cable runs ahead of network switches or PoE injectors.
First, mount the unit to a wall near the cable entry. Then, terminate incoming shielded Ethernet runs on the IN ports and patch the OUT side to the switch. As a result, the DTK-WM4NETS clamps surges on both data and power pairs before they reach the network electronics.
Ditek DTK-WM4NETS Power Handling
Each channel pair is protected against 20 kA of surge current. In addition, the device handles up to 144 W of PoE load. Therefore, it suits PoE Plus and HiPoE installations powering modern outdoor cameras and access points.
Verified Specifications
- Configuration: 4 channels, wall mount
- Connectors: shielded RJ45 in/out
- Data rate: up to 10GbE
- Per-pair surge capacity: 20 kA
- PoE power handling: up to 144 W
- Suppression technology: SAD + GDT
- Listing: UL 497B Listed
- Cabling compliance: Cat 5e, EIA/TIA 568A, EIA/TIA 568B
- PoE compliance: IEEE PoE standards
- Modular ABS construction; field-replaceable channels
Typical Application
Use the DTK-WM4NETS at smaller installations where Ethernet cabling feeds need protection at the building entrance. Furthermore, the wall-mount form factor suits remote IDF closets or NVR locations without rack space. However, this is a network SPD and is not a fire-alarm device.
Order or Get Application Help
To order the Ditek DTK-WM4NETS or confirm PoE budget, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your camera or AP count.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 8.5 × 6 × 3 in |
| Condition | New |
| Manufacturers | Ditek |
| Part Type | Replacement Part |
