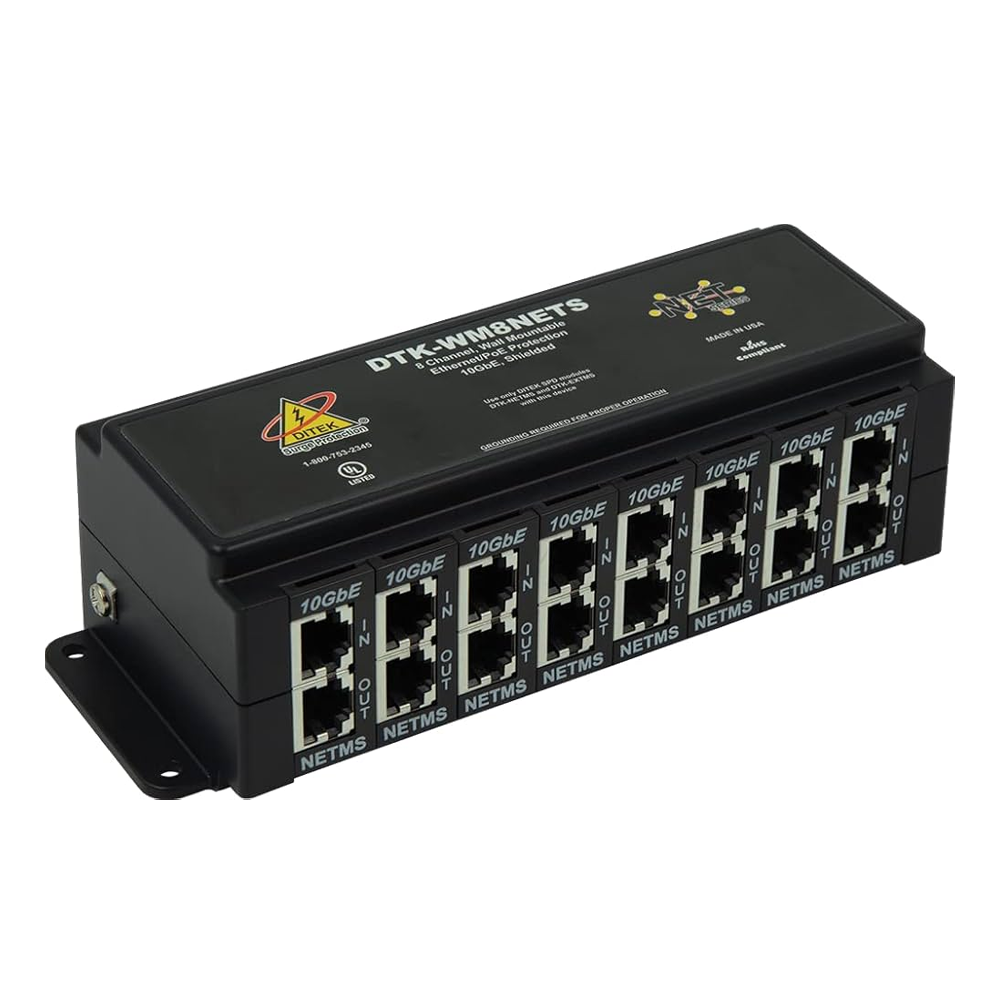

The Ditek DTK-WM8NETS is an 8-channel wall-mount surge protector for shielded Ethernet and PoE circuits. Specifically, it doubles the channel count of the WM4NETS in a similar wall-mount form factor.
First, mount the unit near the building cable entry. Then, terminate the eight incoming shielded Ethernet runs on the IN ports and patch each OUT to the network switch. As a result, the DTK-WM8NETS clamps surges on data and power pairs before they reach network electronics.
Ditek DTK-WM8NETS Power Handling
Each channel pair is protected against 20 kA of surge current. In addition, the device handles up to 144 W of PoE load. Therefore, it suits PoE Plus and HiPoE installations feeding multiple outdoor cameras or access points.
Verified Specifications
- Configuration: 8 channels (8 in / 8 out), wall mount
- Connectors: shielded RJ45 in/out
- Data rate: up to 10GbE
- Per-pair surge capacity: 20 kA
- PoE power handling: up to 144 W
- Suppression technology: SAD + GDT
- Listing: UL 497B Listed
- PoE compliance: IEEE PoE standards
- Modular ABS construction; field-replaceable channels
- STP cabling provides surge grounding path to remote devices
Typical Application
Use the DTK-WM8NETS for mid-size camera or PoE access-point clusters. Furthermore, the wall-mount design suits IDF closets without rack space. However, this is a network SPD and is not a fire-alarm device.
Order or Get Application Help
To order the Ditek DTK-WM8NETS or confirm PoE budget, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your installation details.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 8.5 × 7.5 × 3 in |
| Condition | New |
| Manufacturers | Ditek |
| Part Type | Replacement Part |
