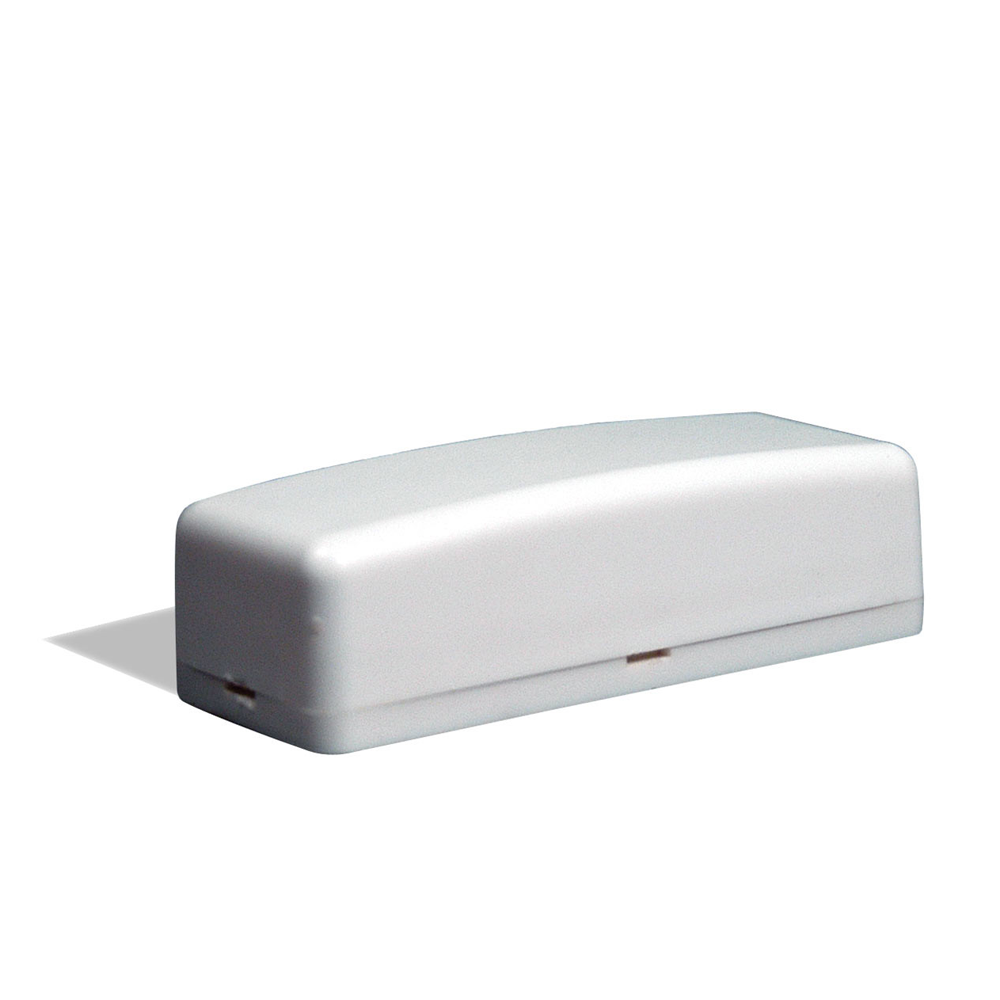

The DSC WS4945N is a 433 MHz wireless door and window contact. It reports when a protected door or window opens.
Inside, a reed switch and magnet sense the opening. In addition, the “N” version adds a normally open external contact input. As a result, you can wire a separate device into the same transmitter.
DSC WS4945N Features
The contact is about 30% smaller than the older WLS925L-433 and WLS935L. Therefore it fits neatly on slim door and window frames. Also, double-sided tape mounting speeds up installation.
A pre-installed battery activates through a pull tab. So installers do not need to open the case. Both case and wall tamper switches report any interference.
Specifications
- Type: wireless door/window contact, normally open external input (“N”)
- Frequency: 433 MHz
- Sensing: built-in reed switch with magnet
- Maximum magnet gap: 5/8 in (16 mm)
- Battery: CR2 3 V lithium, about 5 to 8 years (typical)
- Operating temperature: 0°C to 49°C (32°F to 120°F)
- Dimensions: 75 mm x 31 mm x 22 mm
- Tamper: case and wall tamper
Note: this model is discontinued by the manufacturer with no direct replacement.
Order or Get Application Help
Life Safety Consultants stocks genuine replacement parts and offers application support. To order or get help, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 0.5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
