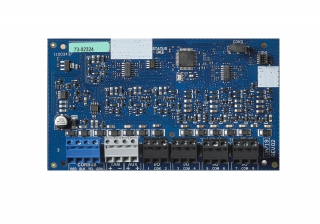

DSC (HSM3408) 8 grade 3 hardwired zone expander module hsm3408

The DSC HSM3408 adds eight fully programmable hardwired zones to any PowerSeries Pro intrusion panel. It is the Pro-series zone expander — separate from the Neo-series HSM2108.

First, the module supports broad loop-resistance flexibility. Specifically, it accepts no end-of-line, single end-of-line (0.5 kΩ to 28 kΩ), double end-of-line (0.5 kΩ to 15 kΩ), or triple end-of-line (0.5 kΩ to 7.5 kΩ) zone wiring.

The HSM3408 connects to the panel over the Corbus. In addition, it is part of the EN 50131 Grade 3 PowerSeries Pro ecosystem. As a result, it suits high-risk commercial intrusion installations such as banks, jewelers, and high-value retail.

DSC HSM3408 Specifications

• Inputs: 8 fully programmable hardwired zones
• Loop resistances: no EOL, single EOL (0.5-28 kΩ), double EOL (0.5-15 kΩ), or triple EOL (0.5-7.5 kΩ)
• Input voltage: 10.8 VDC to 12.5 VDC via Corbus
• Board current draw: 50 mA
• Board dimensions: 83 mm × 145 mm (3.25″ × 5.7″)
• Operating temperature: -10°C to 55°C (14°F to 131°F)

Compatible Panels

The HSM3408 works with the PowerSeries Pro family — HS3032, HS3128, and HS3248. Also, EN 50131 Grade 3 listed installations require Pro-grade keypads and modules end-to-end.

Important Application Note

The HSM3408 is an EN 50131 Grade 3 intrusion expander. Therefore, do not install it on a fire alarm SLC or IDC loop. For fire alarm zone expansion, use the panel manufacturer’s listed fire expander instead.

Order or Get Application Help

Since 2002, Life Safety Consultants has supplied genuine DSC PowerSeries Pro modules. To order the DSC HSM3408 or confirm panel compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
