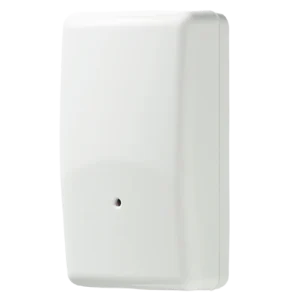

DSC (WS4965) Tri-Zone Dr/Window Contact

The DSC (WS4965) is a wireless tri-zone door/window contact transmitter for DSC 433 MHz residential security receivers. It is an intrusion device, not a fire alarm initiating device.

Therefore, the WS4965 pairs with DSC residential security panels equipped with a 433 MHz wireless receiver — not with fire alarm control units.

First, an internal reed switch reports door/window state for the first zone. In addition, two normally-closed hardwired external contact inputs cover the second and third zones. As a result, one transmitter can monitor up to three separate openings or dry-contact devices. Furthermore, each zone reports its own supervisory signal to the receiver.

DSC (WS4965) Verified Specifications

• Zones: three (1 internal magnetic + 2 external normally-closed contact inputs)
• Per-zone supervision: each zone transmits a separate supervisory signal
• Frequency: 433 MHz (compatible with all DSC 433 MHz wireless receivers)
• Battery: 3V Lithium CR123A (user-replaceable)
• Battery life: up to 5 years typical
• Low-battery indication: red LED flashes at 10-second intervals
• Internal magnet gap: 1/2 in (13 mm)
• Operating temperature: 14°F to 120°F (-10°C to 49°C)
• Dimensions: 2.9375 in × 1.6875 in × 1 in (L × W × H)
• Mounting: traditional door/window orientation, or configurable for normally-closed tilt-switch operation (e.g., garage doors)

Important Application Note

The WS4965 is an intrusion door/window contact transmitter. Therefore, do not connect it to a fire alarm SLC, IDC, or NAC. For fire-system monitoring, use a UL 268-listed initiating device instead. Note: this product line has been discontinued by DSC; confirm availability before specifying for new construction.

Order or Get Application Help

Since 2002, Life Safety Consultants has stocked genuine DSC wireless contacts. To order the DSC WS4965 or confirm panel compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
