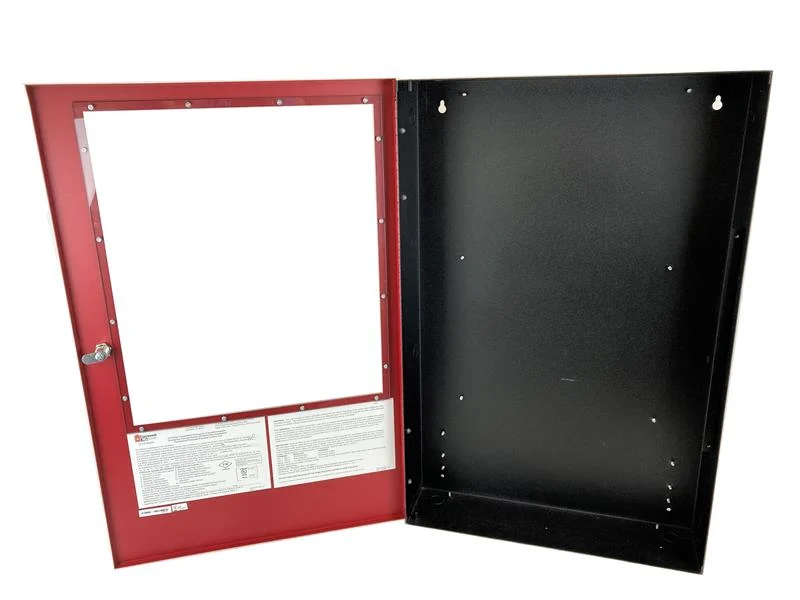

The Honeywell E3BB-RC/INCC is a combination fire/ACU command-center enclosure. Specifically, it is the “C” size enclosure with a red door for E3 Series systems. As a result, fire and mass-notification controls share one cabinet.
The E3BB-RC/INCC supports the Gamewell-FCI E3 Series Combined Fire and MNS system. Therefore, integrators can deploy fire alarm and audio command from a single enclosure footprint. In addition, the red door identifies the cabinet as a fire-rated assembly.
Honeywell E3BB-RC/INCC Specifications
First, the cabinet dimensions are 19-1/4″ W x 30″ H x 4-1/2″ D. In metric, that is 49 x 76 x 11 cm. Then, the door finish is red. Furthermore, the cabinet ships as a back-box/door assembly only.
Required Accessories
The E3BB-RC/INCC needs additional parts to complete the assembly. First, an E3ID-C inner door installs over the chassis. Then, an E3-CPLATE chassis plate carries the boards. Therefore, plan to order both alongside the enclosure.
Order or Get Application Help
Life Safety Consultants stocks Gamewell-FCI E3 Series enclosures and trim. To order the Honeywell E3BB-RC/INCC and matching inner door and chassis plate, call our team.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 34 lbs |
|---|---|
| Dimensions | 35 × 24 × 9 in |
| Condition | New |
| Manufacturers | Honeywell |
| Part Type | Smoke Sensor |
