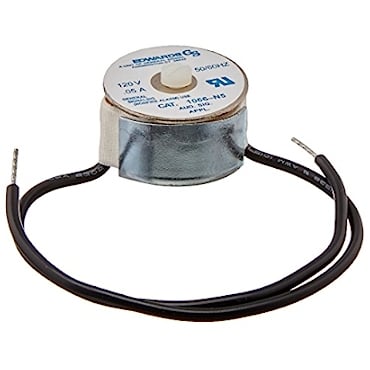

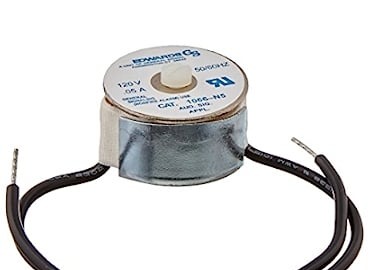

The Edwards 1066-N5 is a box-mounted adjustable-volume buzzer. It provides a simple audible signal for general annunciation.
This model runs directly on 120 VAC line power. As a result, it suits process, equipment, and OEM signaling where line voltage is available. In addition, an adjustable volume control lets you tune the output to the room.
Edwards 1066-N5 Features
The buzzer produces up to 84 dB of sound. However, it draws only 0.05 A. Therefore the low current allows long wire runs without heavy conductors. Also, the compact round housing mounts easily in a standard box.
Specifications
- Type: box-mounted adjustable-volume buzzer
- Voltage: 120 VAC, 50/60 Hz
- Current: 0.05 A (about 6 VA)
- Sound output: up to 84 dB
- Size: 1-1/4 in diameter x 13/16 in high, round
- Finish: zinc plated
- Listing: UL approved
- Applications: commercial, OEM, and general signaling
Order or Get Application Help
Life Safety Consultants stocks genuine replacement parts and offers application support. To order or get help, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 3.5 × 3 × 1.5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
