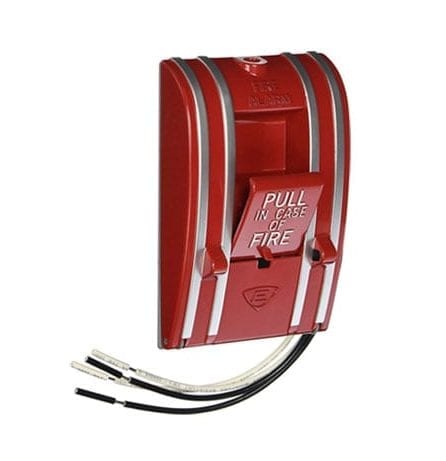

The Edwards 270A-SPO pull station is a single-action, break-glass manual station with 6-inch wire leads. First, the user breaks the glass rod to initiate. Then, the latched alarm contact must be reset with the key. As a result, the station resists accidental activation in everyday traffic.
Specifically, the “A” suffix denotes the wire-lead variant of the 270 series. Therefore, the 270A-SPO is well-suited to junction-box installs where pre-terminated leads simplify the splice. Also, “SPO” identifies the contact configuration as single pole, normally open.
Edwards 270A-SPO construction and listings

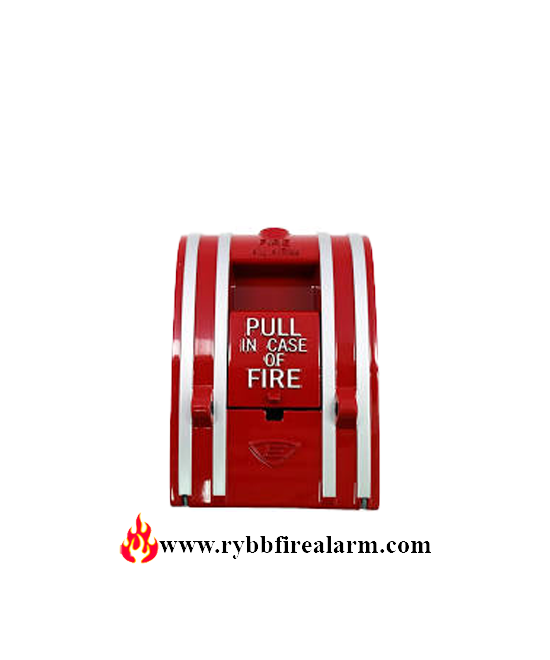

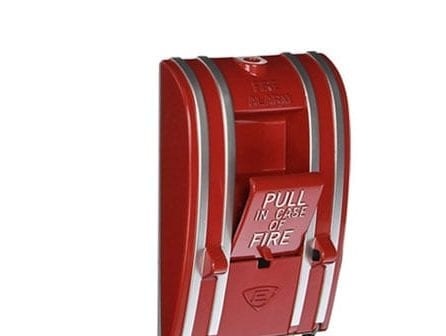

The 270 series body is die-cast metal painted red with silver stripes. Furthermore, the casting tolerates rough handling in schools, offices, and industrial corridors. In addition, the station is UL 38 Listed, CSFM, FM Approved, and MEA Listed. However, listings apply at the manual-station level, not at the smoke- or audible-device level.
Verified specifications
- Operation: single action, break glass, key reset
- Contact configuration: single pole, normally open (SPO)
- Contact rating: 3 A at 30 VAC / 60 VDC
- Wiring: 6-inch (150 mm) wire leads
- Body: die-cast metal, red with silver stripes
- Operating temperature: 32 to 120°F (0 to 49°C)
- Mounting: flush or surface (4-inch square box, single-gang plaster cover)
- Listings: UL 38, CSFM, FM Approved, MEA Listed
For service replacements, the 270A-SPO pairs with conventional initiating circuits on most legacy fire alarm panels. However, always confirm the panel’s EOL resistor value and supervision before commissioning.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Pull Station |
