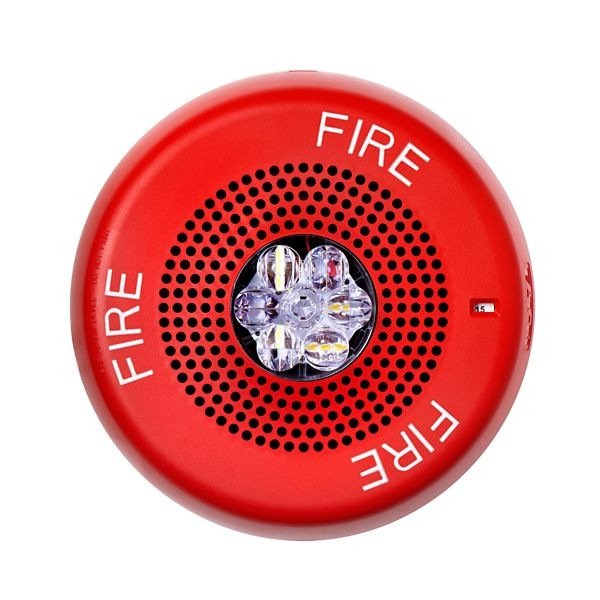

The Eaton ELCHSRC is an Eluxa-series LED chime/strobe notification appliance. It is ceiling-mounted, red, and operates at 24 VDC for fire alarm service.
The Eluxa family is Eaton’s LED-based notification appliance line. As a result, the ELCHSRC draws less current per candela than traditional xenon strobes. In addition, the integrated chime provides an audible tone alongside the strobe’s visual flash.
Typical Applications
Chime/strobe combinations fit places where a softer audible tone is preferred over a horn. For example, hospitals, libraries, schools, and office buildings often spec chime/strobes in patient or quiet areas. Therefore, the ELCHSRC works where standard horn/strobe output would be too loud or disruptive.
Key Features
- Eluxa-series LED chime/strobe combination appliance
- Ceiling-mount, red housing, fire alarm service
- 24 VDC operation
- Multi-candela strobe with field-selectable settings
- Lower current draw than equivalent xenon strobes
Notes on Compatibility
The ELCHSRC drives from a standard supervised 24 VDC notification appliance circuit. However, sync-protocol selection (Eaton, System Sensor, Wheelock, Gentex, Amseco, etc.) varies by part number suffix. Furthermore, confirm the sync protocol against the appliance setting and the panel/synchronization module before final design.
Order or Get Application Help
Since 2002, Life Safety Consultants has been a source for Eaton/Wheelock Eluxa notification appliances. To order the Eaton ELCHSRC or to verify candela and sync settings, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 6.2 × 6.2 × 3.6 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Strobe |
