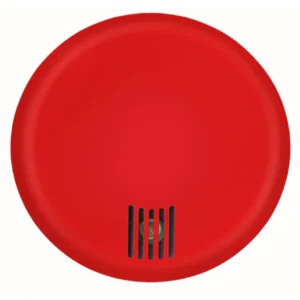

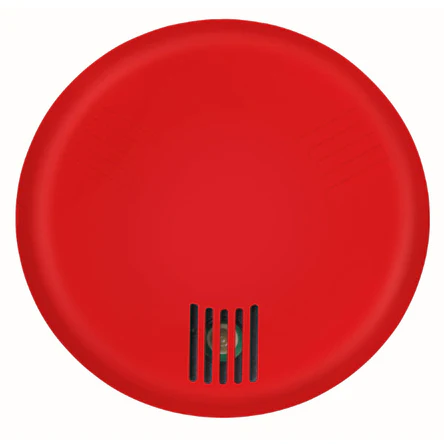

The Eaton ELHNRC is a Wheelock Eluxa LED-platform horn. It is a ceiling-mount appliance with a red housing and supports both 12 VDC and 24 VDC operation. The “C” suffix denotes ceiling mount; no strobe is included.
First, the unit produces a fire alarm horn tone for indoor commercial notification circuits. Then, the installer selects one of three patterns: Continuous, T3 (fire), or T3/T4 (fire + CO). As a result, one part number covers both fire and CO notification.
Eaton ELHNRC Sound and Electrical
- Low setting: 86 dBA anechoic at 10 ft
- High setting: 91 dBA anechoic at 10 ft
- 3 horn patterns: Continuous, T3, T3/T4
- Operating voltage: 8-17.5 VDC/VFWR (12 V) or 16-33 VDC/VFWR (24 V)
- UL/ULC max RMS current at 24 VDC: 25-28 mA high, 20-21 mA low
Mounting and Listings
The ELHNRC ships with a hinged mounting plate. Specifically, ceiling mounting options include LSPKBB-C backboxes or 4-inch square boxes 1-1/2 inch or 2-1/8 inch deep. In addition, the appliance is listed under UL 464, CAN/ULC-S525, CSFM, RoHS, and FCC Part 15.
Ceiling dimensions: 6.27 in diameter x 1.69 in D. Furthermore, the UV-stabilized engineered-plastic housing exceeds UL 94V-0 flammability rating.
Compatibility
The ELHNRC works on any standard supervised 24 VDC NAC. Also, the Eluxa family is UL/ULC listed as compatible with sync modules and panels already validated for Wheelock RSS and Exceder LED3 strobe products. Therefore, the ELHNRC can share a NAC with legacy xenon devices within the same field of view.
Ordering Notes
For combined horn-plus-strobe ceiling coverage, choose the ELHSRC horn-strobe variant instead. Also, the matching white ceiling sibling is the ELHNWC; the wall version of this SKU is the ELHNR. Furthermore, verify the host NAC voltage and sync-protocol requirement before final design.
Order the Eaton ELHNRC
Life Safety Consultants stocks Eluxa LED-platform horns and horn-strobes. To order or for help confirming the right ceiling variant, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 2.5 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Replacement Part |
