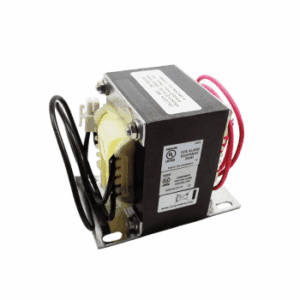

Edwards (F-XTR120) Nac power expansion transformer, 120v, increases 10 zone facp nac power to 7.0 amps.

The Edwards F-XTR120 is a notification appliance circuit (NAC) power expansion transformer. The unit accepts 120-volt AC input.

First, the transformer connects to a 10-zone Edwards fire alarm control panel (FACP). Then, it expands available NAC power to 7.0 amps. As a result, installers can drive more horn/strobe load than the base panel supports on its own.

The F-XTR120 is a power-only component. Therefore, it does not change the panel’s zone count, programming, or supervision.

Edwards F-XTR120 Application

• NAC power expansion transformer for Edwards 10-zone FACP installations
• 120 VAC input
• Boosts total NAC output capacity to 7.0 amps
• Common use: adding horn/strobe coverage during a building expansion or retrofit

Notes Before Ordering

Confirm the host panel model accepts the F-XTR120 expansion accessory. Also confirm the AC branch circuit and overcurrent protection rating before installation.

Order the Edwards F-XTR120

Life Safety Consultants stocks Edwards conventional FACP accessories. To order or check compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
