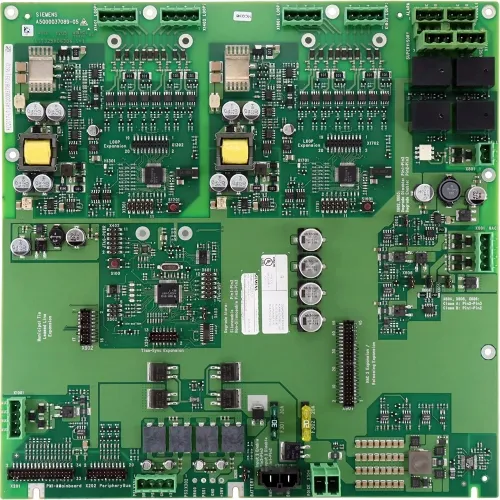

The Siemens FCI2016-U1 is a system periphery board for Cerberus PRO fire alarm panels. It serves as a main operating component in the FC922 and FC924 panels. Specifically, it drives the signaling line circuits that connect field devices. As a result, the panel supervises and controls up to 252 addressable points.
Siemens FCI2016-U1 Circuit Support
The board supports flexible loop wiring. For example, it handles one to four Class B circuits. Alternatively, it handles one to two Class A circuits. In addition, it includes one integrated loop card covering Loop A and Loop B. Furthermore, built-in EMC surge protection serves four Style 4 or two Style 6/7 loops.
Specifications
- System periphery board for Cerberus PRO FC922 and FC924 panels
- Supervises and controls up to 252 addressable devices
- One to four Class B circuits, or one to two Class A circuits
- Integrated loop card (Loop A / Loop B) with EMC surge protection
- Four Style 4, or two Style 6/7 signaling line circuits
- Approvals: FM (#3010), CSFM, and FDNY
This board is a panel component, not a field detector. Therefore, install it only in compatible Cerberus PRO hardware. Life Safety Consultants stocks Siemens Cerberus PRO boards and parts.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 13 × 19 × 4.5 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Duct Detector / Housing |
