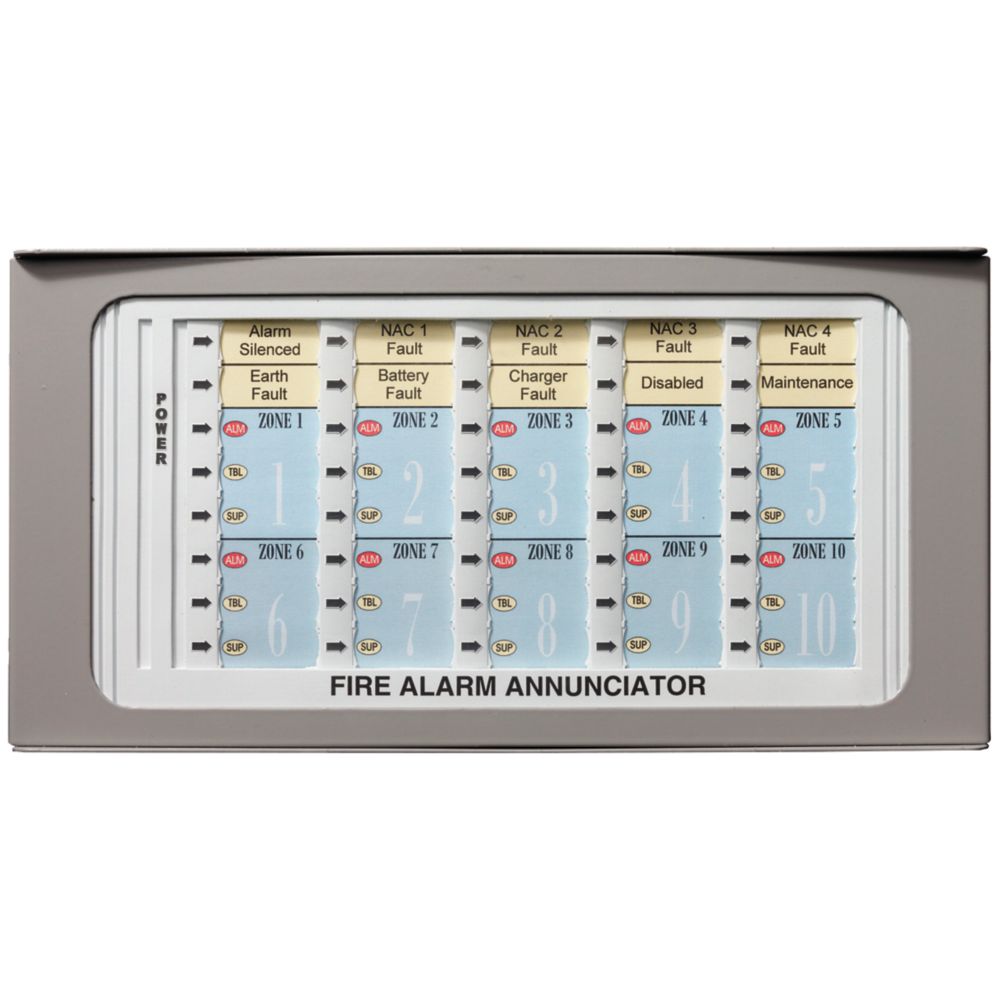

The Fire-Lite ANN-LED-W annunciator module represents a critical component in comprehensive fire alarm and notification systems for complex commercial and institutional environments. Designed for seamless integration with addressable fire alarm control panels, this 10-zone module provides comprehensive visual indication of system status across multiple input zones, enabling rapid identification and response to potential fire safety events.
Engineered for professional fire alarm installers and facility safety managers, the ANN-LED-W delivers robust performance in demanding applications such as multi-story office complexes, educational institutions, healthcare facilities, and industrial campuses. Its modular design allows precise monitoring and immediate visual communication of alarm, trouble, and supervisory conditions through distinct LED indicators.
Key Features
- 10 independent input zones with configurable LED status indicators (red for alarm, yellow for trouble/supervisory)
- Compatible with Fire-Lite addressable control panels and most standard fire alarm architectures
- UL 864 listed and compliant with NFPA 72 fire alarm notification requirements
- White powder-coated enclosure suitable for surface or flush mounting configurations
- Low-voltage operation with minimal current draw, supporting long-term system reliability
- Plug-in terminal connections for simplified installation and maintenance
Technical Specifications
- Operating Voltage: 24VDC
- Maximum Current Draw: 100mA
- Dimensions: 8.5″ x 6.25″ x 2.25″
- Operating Temperature Range: 32°F to 120°F
- Relative Humidity: 10% – 93% non-condensing
Professional fire alarm technicians will appreciate the ANN-LED-W’s versatility in complex notification scenarios, including integration with HVAC shutdown systems, emergency communication networks, and centralized monitoring platforms. Its reliable LED indication provides immediate visual confirmation of system status, critical for rapid emergency response and compliance with contemporary fire safety protocols.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 12.5 × 10 × 4 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Annunciator |
