FIRE-LITE (ECC-CE6) Circuit Expander Module – Provides Conne

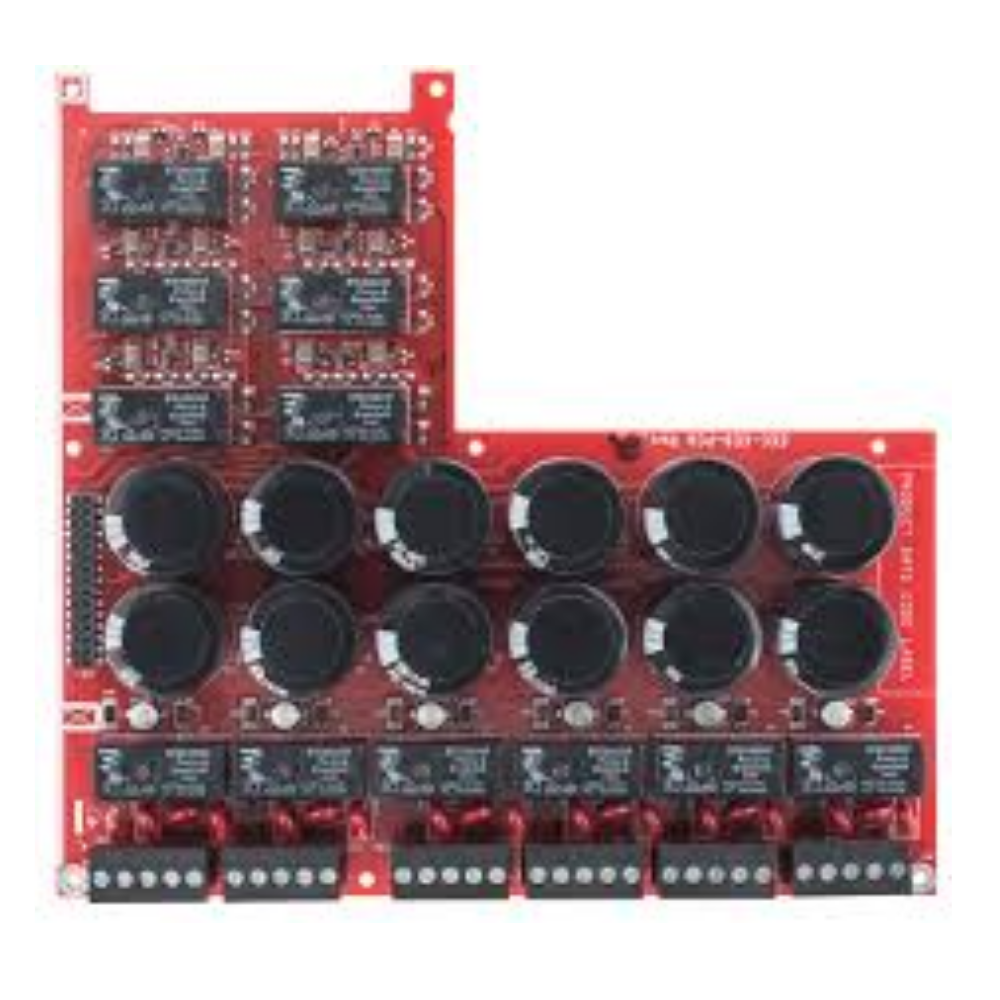

The Fire-Lite ECC-CE6 Circuit Expander Module is a critical component for comprehensive fire alarm notification systems, designed to extend circuit capacity and enhance communication infrastructure in complex commercial and institutional environments. This robust module provides essential connectivity for multiple speaker circuits, enabling advanced audio signaling strategies in addressable fire alarm panels.

Engineered for professional installation and seamless integration, the ECC-CE6 supports up to six speaker circuits configured in either Style Z (Class A) or Style Y (Class B) configurations. Its modular design allows fire alarm contractors to efficiently expand notification capabilities in high-occupancy facilities such as office complexes, educational institutions, healthcare facilities, and large commercial spaces where comprehensive emergency communication is critical.

Key Features

• Supports up to six independent speaker circuits with flexible Class A or Class B configuration
• Compatible with Fire-Lite addressable fire alarm control panels and notification appliance circuits
• Enhanced circuit supervision with comprehensive fault monitoring and reporting
• Compact form factor designed for efficient panel integration and reduced installation footprint
• UL 864 listed and compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
• Robust electronic design with superior electromagnetic interference (EMI) protection

Technical Specifications

• Operating Voltage: 24VDC nominal
• Maximum Standby Current: 50mA
• Maximum Alarm Current: 250mA per circuit
• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
• Relative Humidity: 93% non-condensing
• Dimensions: Approximately 6″ x 4″ x 1.5″ (standard mounting profile)

Ideal for professional fire alarm system integrators and facilities managers requiring reliable, expandable notification infrastructure, the Fire-Lite ECC-CE6 provides a robust solution for complex emergency communication requirements across diverse commercial environments.

For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
