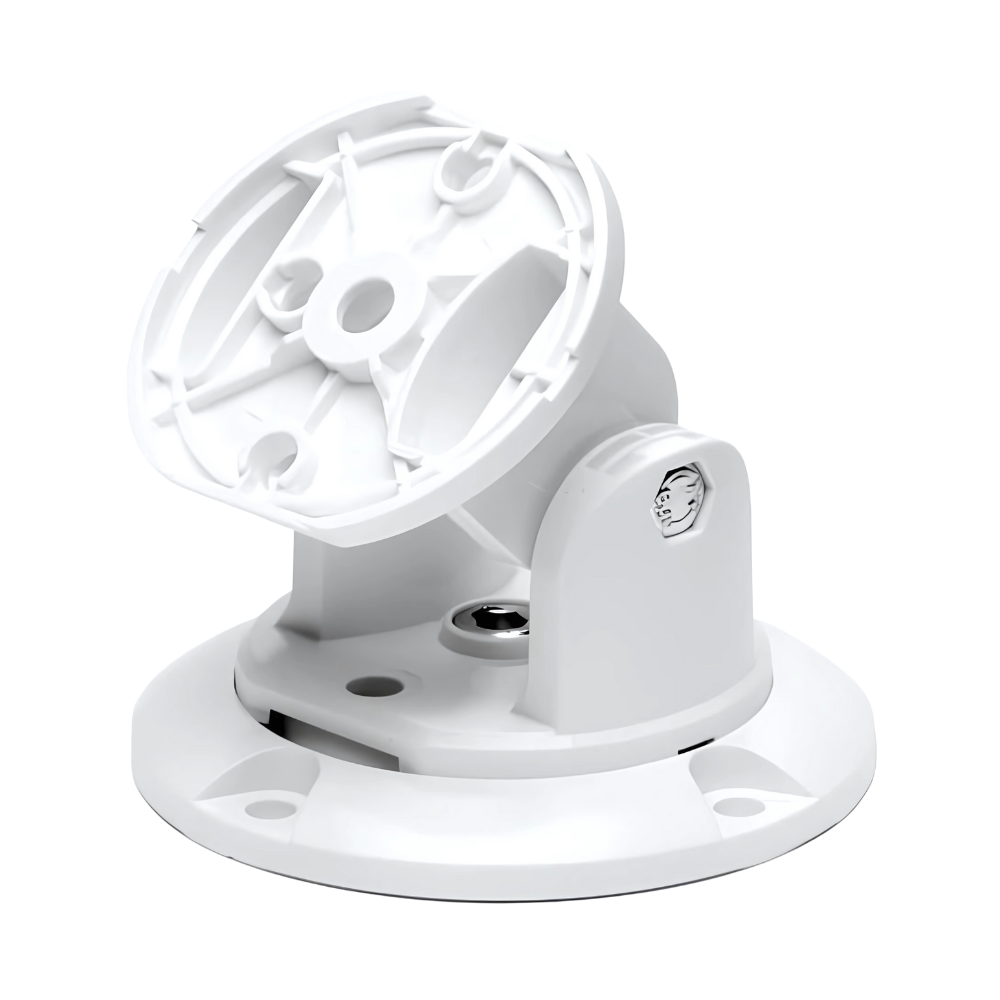

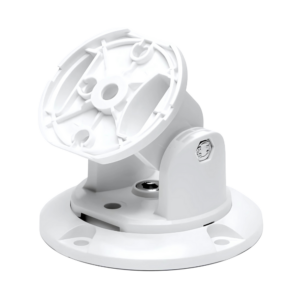

The Fireray 1170-000 is a detector adjustment bracket. Specifically, it lets installers aim a Fireray detector head precisely after it is mounted. As a result, beam alignment is faster and more forgiving of imperfect mounting surfaces.
In addition, the 1170-000 supports the full Fireray reflective-detector line.
How the Adjustment Bracket Helps
Beam detectors require careful aim at a reflector target. However, walls and structural-steel mounting points are rarely exactly square to the reflector. Therefore, an adjustment bracket lets the head rotate independently of the mount.
Specifically, the 1170-000 offers 360-degree rotation around the mounting axis. In addition, it provides up to 180 degrees of tilt adjustment, depending on the detector model used.
Compatible Fireray Detectors
- Fireray One
- Fireray End-to-End
- Fireray 3000
- Fireray 5000
Key Features
- Adjustment bracket for Fireray reflective beam smoke detectors
- 360-degree rotation
- Up to 180 degrees of tilt adjustment (varies by detector model)
- Compatible with Fireray One, End-to-End, Fireray 3000, and Fireray 5000
- Speeds beam alignment on non-square mounting surfaces
Order the Fireray 1170-000
Life Safety Consultants stocks the Fireray 1170-000 adjustment bracket along with Fireray detector heads and reflectors. To order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 5.5 × 3 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
