The Gamewell GWMS-95T is the Gamewell-FCI MS-95T analog addressable manual pull station with terminal block leads. First, it is a non-coded, single-action station with a key-lock reset feature. In addition, the terminal block variant simplifies field wiring on conduit-fed installations. As a result, technicians do not need to splice the loop conductors at the device.
Where the Gamewell GWMS-95T is used
The MS-95T connects to the analog addressable circuit using two wires. Furthermore, the datasheet (Gamewell-FCI CS-2053) lists compatibility with the 600 Series (IdentiFlex 602), the E3 Series (ILI95-E3), and the S3 Series (SLC95-PM). Therefore, the GWMS-95T is the terminal-block variant of the GWMS-95 (wire leads); the two stations share the same housing and operation.

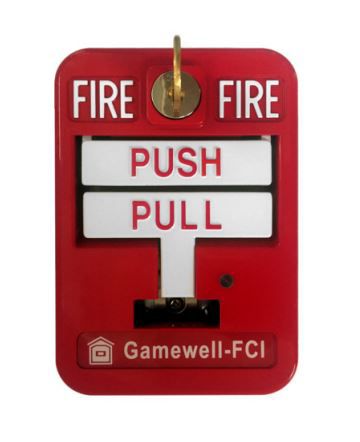

To activate the station, press the lever marked PUSH inward. Then pull the handle marked PULL downward until it locks in the alarm position. To reset, insert the key, turn it, and the cover lowers and resets the toggle switch.
Compliance
The MS-95T complies with UL Standard 38 for manual pull stations. Also, it meets ADA AG Controls and Operating Mechanisms Guidelines for 5 lb maximum pull force and 4 ft mounting height. In addition, the CSFM listing is 7300-1703:0136 under the Signaling category.
Specifications
- Manufacturer: Gamewell-FCI (Honeywell)
- Model: MS-95T (analog addressable manual pull station, terminal block)
- Action: single-action, non-coded
- Reset: key-lock
- Mounting: surface or semi-flush
- Power: 24 VDC
- Standby current: 0.8 mA
- Alarm current: 1.5 mA
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Relative humidity: 93%, non-condensing
- Material: die-cast aluminum
- Finish: fire alarm red, smooth gloss enamel
- Dimensions: 4.75″ H x 3.25″ W x 1.125″ D (from backplate)
- UL listing: UL 38
- CSFM: 7300-1703:0136
- Compatible panels: Gamewell-FCI 600 Series (IdentiFlex 602), E3 Series (ILI95-E3), S3 Series (SLC95-PM)
- Related parts: GWMS-95 (wire-leads variant), 28762 surface backbox, 30653-01 key reset option, 27060 breakglass rod
Order the Gamewell GWMS-95T from Life Safety Consultants
Specify the GWMS-95T when terminal-block wiring is required at the device. Also, Life Safety Consultants stocks the matching backboxes, key reset kits, and breakglass rods.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 2 × 4 × 5 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Pull Station |
