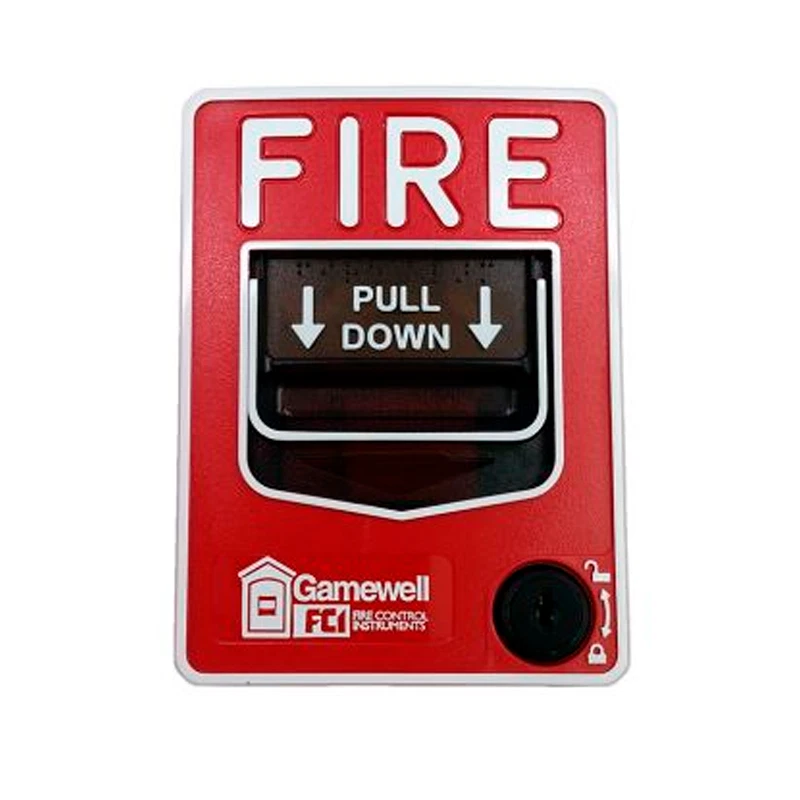

Gamewell (MS-7ASF) Manual fire alarm pull station

The Gamewell MS-7ASF is the Velociti Series addressable single-action manual pull station. First, it installs on the signaling line circuit of Gamewell-FCI analog addressable control panels. In addition, the Velociti protocol delivers up to five times faster response than earlier addressable designs. As a result, the panel can isolate an alarm to a single device in milliseconds.

Gamewell MS-7ASF operation

Activation of the station registers its assigned address at the panel. Furthermore, the door includes an LED that flashes green in normal condition. Then the LED lights steady red once the station is activated. Therefore, technicians can confirm status at the device without returning to the panel.

Also, all MS-7 Series pull stations include a key lock/reset that is keyed alike with Gamewell-FCI fire alarm control panels and other MS-7 stations. In addition, operating instructions and Braille text are engraved in the handle for accessibility.

Compliance

The MS-7ASF complies with ADA’s 5 lb maximum pull force requirement. Also, the MS-7 Series is built to UL 864 9th Edition. In addition, the series carries UL S2465, FM 3023594, MEA FDNY 67-02-E Vol. VII, and CSFM 7160-1703:0119, 0170, and 0109 listings.

Specifications

• Manufacturer: Gamewell-FCI (Honeywell)
• Model: MS-7ASF (Velociti addressable, single action)
• Material: Lexan
• Mounting: surface or semi-flush on double-gang or 4″ square electrical box
• Wiring: screw terminals
• Contact rating: 0.25 A at 30 VAC/VDC (resistive)
• Dimensions: 5-5/8″ H x 4-1/4″ W x 1-1/4″ D (14 x 10.1 x 3.2 cm)
• Operating temperature: 32°F to 120°F (0°C to 49°C)
• Relative humidity: 10% to 93%, non-condensing
• Supervisory current: 0.30 mA
• Alarm current: 3.0 mA (plus 7 mA for LED)
• Standards: UL 864 9th Edition
• Listings: UL S2465, FM 3023594, MEA FDNY 67-02-E Vol. VII, CSFM 7160-1703:0119 / 0170 / 0109
• Related parts: MS-7AF (Velociti addressable double action), MS-7S (conventional single action), SB-10 surface backbox, BG12TR semi-flush trim ring, NY-PLATE NYC backplate

Order the Gamewell MS-7ASF from Life Safety Consultants

Specify the MS-7ASF for single-action addressable pull stations on Gamewell-FCI analog addressable panels. Also, Life Safety Consultants stocks the matching backboxes, trim rings, and NYC backplates from the MS-7 Series.
