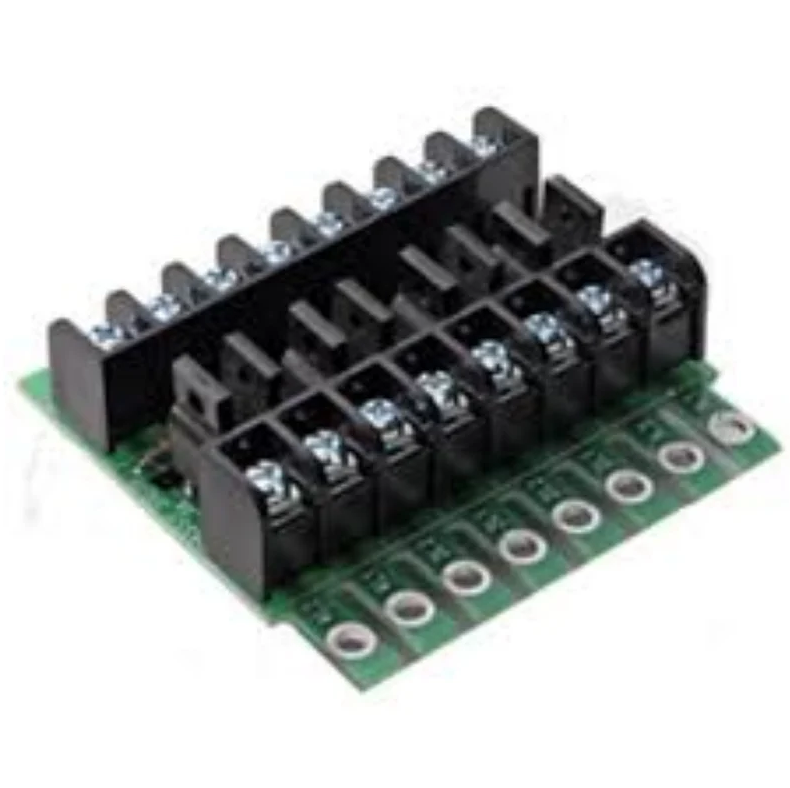

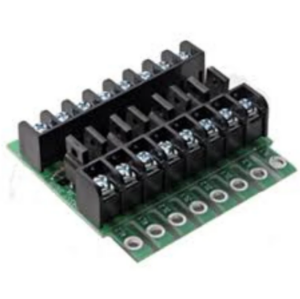

The Honeywell HPP31076 is a Class A (Style Z) NAC adapter for Honeywell Power Products NAC expanders. It converts four notification appliance circuits from Class B to Class A wiring.
First, the adapter mounts directly onto terminal block TB4 on the control circuit board. Then the four NAC outputs operate as Class A loops with full supervision. As a result, an open or short on a NAC stays detectable until the wiring is repaired.
Honeywell HPP31076 Compatibility
The HPP31076 mounts inside the HPFF8, HPFF8CM, HPFF8E, and HPFF8CME NAC expanders. In addition, it fits the HPFF12, HPFF12CM, HPFF12E, and HPFF12CME 12-amp expanders.
Key Specifications
- NAC output rating: 24 VDC fully regulated, 3.0 A maximum per circuit
- Reference resistor: 3.9 kΩ (required)
- Field wire gauge: 12 AWG to 18 AWG
- Kit includes two plastic standoffs for support
Installation Notes
Use only batteries with a maximum height of 4 inches when the adapter sits inside the standard enclosure. Furthermore, T-tapping is not allowed at the screw terminals. If two conductors land on the same terminal, both wires must be the same gauge and must enter on opposite sides of the screw.
Order or Get Application Help
Since 2002, Life Safety Consultants has been a trusted source for Honeywell Power Products parts. To order the Honeywell HPP31076 or get application guidance, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
| Condition | New |
| Manufacturers | Honeywell |
| Part Type | Replacement Part |
