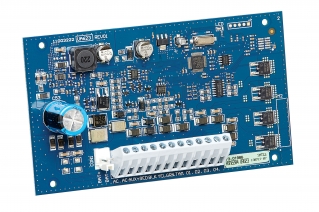

The DSC HSM2204 High Current Output Module is a critical power supply component designed for professional fire alarm and security system installations. Engineered for use with PowerG and PowerSeries Neo control panels, this module provides robust auxiliary power distribution in complex commercial and institutional environments where reliable electrical management is paramount.
Ideal for large-scale fire detection and notification systems, the HSM2204 enables precision power management across multiple circuits. Its high-current output capabilities make it suitable for powering extensive network devices, including smoke detectors, notification appliances, and auxiliary system components in addressable fire alarm configurations.
Key Features
- 4 independently supervised programmable high-current output circuits
- Compatible with DSC PowerSeries Neo control panel architectures
- Maximum output current of 2A per circuit with comprehensive short circuit protection
- Field-programmable circuit configurations for customized power distribution
- UL Listed for fire alarm and security system applications
- Compact design optimized for standard electrical enclosures and panel installations
Specifications
- Input Voltage: 12VDC
- Total Output Current: 8A maximum
- Circuit Protection: Polymeric resettable fuse
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Dimensions: 4.5″ x 6.5″ x 1.5″ (approximate)
Typical installation contexts include commercial office complexes, educational facilities, healthcare campuses, and industrial environments requiring comprehensive fire alarm and emergency notification infrastructure. The HSM2204 integrates seamlessly with addressable fire alarm panels, supporting NFPA 72 compliance for notification and power management requirements.
Fire alarm professionals will appreciate the module’s robust design, which meets stringent UL 268 and UL 464 standards for smoke detection and notification appliance circuits. Its advanced supervision and programmability ensure precise electrical management in mission-critical life safety systems.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 7 × 4 × 3 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Power Supply |
