The Siemens ID-MP (part# 500-633027) is an inner door module mounting plate for Siemens modular fire alarm systems. It mounts on the inner door of the system command console enclosure. Specifically, it provides the mounting spaces for Siemens annunciator and control modules.
Each ID-MP mounting plate has four module spaces. Therefore, one plate holds four SCM-8 switch-control modules or four LCM-8 LED-control modules. Alternatively, it holds two FCM-6 fan-control modules, since each FCM-6 uses two spaces. In addition, any combination of SCM-8, LCM-8, and FCM-6 modules can share a plate.

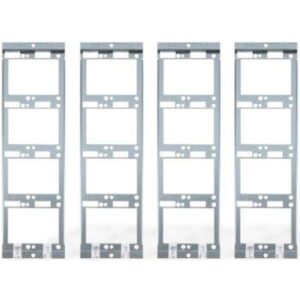

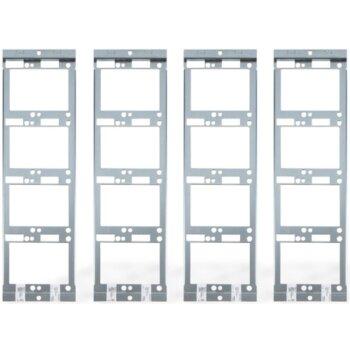

Siemens packages four mounting plates in each ID-MP order. As a result, one package supports a full inner-door module layout. A blank plate (Model BCM) is available to cover unused module positions.
Key Features of the Siemens ID-MP
- Inner door mounting plate for the modular system command console enclosure
- Four module spaces per plate
- Accepts SCM-8 switch-control, LCM-8 LED-control, and FCM-6 fan-control modules in any combination
- Four mounting plates included per package
- Genuine Siemens hardware, part number 500-633027
Specifications
- Manufacturer: Siemens
- Model: ID-MP
- Siemens part number: 500-633027
- Product type: Inner door module mounting plate (hardware accessory)
- Capacity: up to four modules per plate; FCM-6 occupies two module spaces
- Condition: New
Compatibility
The ID-MP serves the Siemens Cerberus PRO Modular and Desigo Fire Safety Modular system command consoles. First, technicians mount the plate on the enclosure inner door. Then, the SCM-8, LCM-8, or FCM-6 modules attach to the plate’s module spaces. A supplied six-conductor cable interconnects the modules. Also, the Model CCL 30-inch cable connects between rows.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 16 × 7 × 5 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Control Module |
