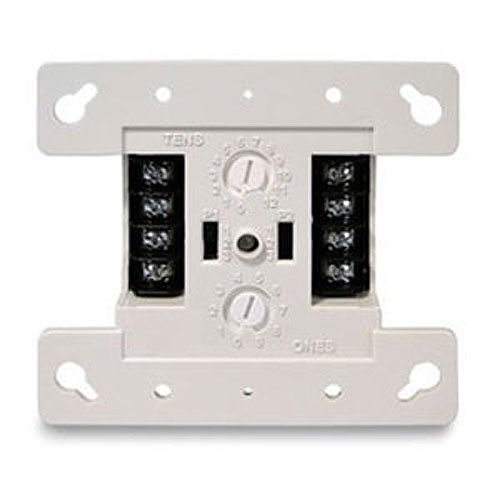

The Kidde FX-ISO Analog Fault Isolator Module represents a critical component in addressable fire alarm systems, designed to enhance system reliability and diagnostic capabilities in complex commercial and institutional environments. This sophisticated module provides advanced short circuit isolation functionality, preventing single circuit faults from compromising entire detection zones and ensuring continuous fire protection performance.
Engineered for seamless integration with analog addressable fire alarm control panels, the FX-ISO delivers precision fault management across networked detection circuits. Its primary function is to automatically segment and isolate electrical short circuits within signaling loops, maintaining system-wide communication and minimizing potential downtime during emergency detection scenarios.
Key Features
- Advanced short circuit isolation for analog addressable fire alarm networks
- Compatible with standard 24VDC supervised circuits in commercial fire alarm installations
- Rapid fault detection and automatic circuit segmentation to preserve system integrity
- Compact design allows for streamlined panel mounting and simplified installation
- Meets UL 864 and NFPA 72 requirements for fire alarm control equipment
- Supports multiple panel manufacturers’ addressable communication protocols
Specifications
- Operating Voltage: 24VDC nominal
- Standby Current Draw: < 250µA
- Alarm Current Draw: < 10mA
- Operating Temperature Range: 32°F to 120°F
- Dimensions: 4.5″ x 2.75″ x 1.25″
Typical installation contexts include multi-story commercial office buildings, healthcare facilities, educational campuses, and mission-critical infrastructure where comprehensive fire detection system reliability is paramount. Fire alarm contractors will appreciate the FX-ISO’s plug-and-play configuration and robust design, which minimizes potential installation complexities in challenging electrical environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 1.7 × 6.5 × 5.9 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Strobe |
