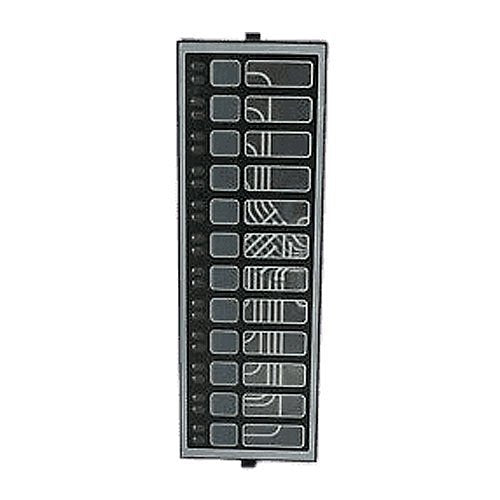

The Kidde D12LS-VM is a 12-group control/indicating display strip. Specifically, it installs in the Kidde VM-1 life safety control panel. As a result, operators get programmable switches and per-group status LEDs.
Each group on the strip includes two LEDs and one switch. First, a quad-color LED reports point or zone status. Then, a yellow LED supports an auxiliary indication. In addition, every group ships with a custom label area for site-specific text.
Kidde D12LS-VM Specifications
First, the strip carries 12 switches per module. Each switch has the paired quad-color and yellow LED. Then, the VM-1 control panel can host up to three D12LS-VM modules. Therefore, a fully populated panel offers up to 36 programmable groups.
Also, the D12LS-VM replaces preinstalled filler plates inside the panel. Furthermore, all switches and LEDs are fully programmable through the panel configuration tool.
Typical Application
The D12LS-VM provides front-panel zone or point annunciation. Specifically, it suits sites where operators need at-a-glance status. In addition, integrators use the switches for manual control of relays, audio, or signal silence.
Order or Get Application Help
Life Safety Consultants stocks Kidde VM Series modules and accessories. To order the Kidde D12LS-VM or plan a VM-1 configuration, call our team.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 12 × 5 × 4 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Annunciator |
