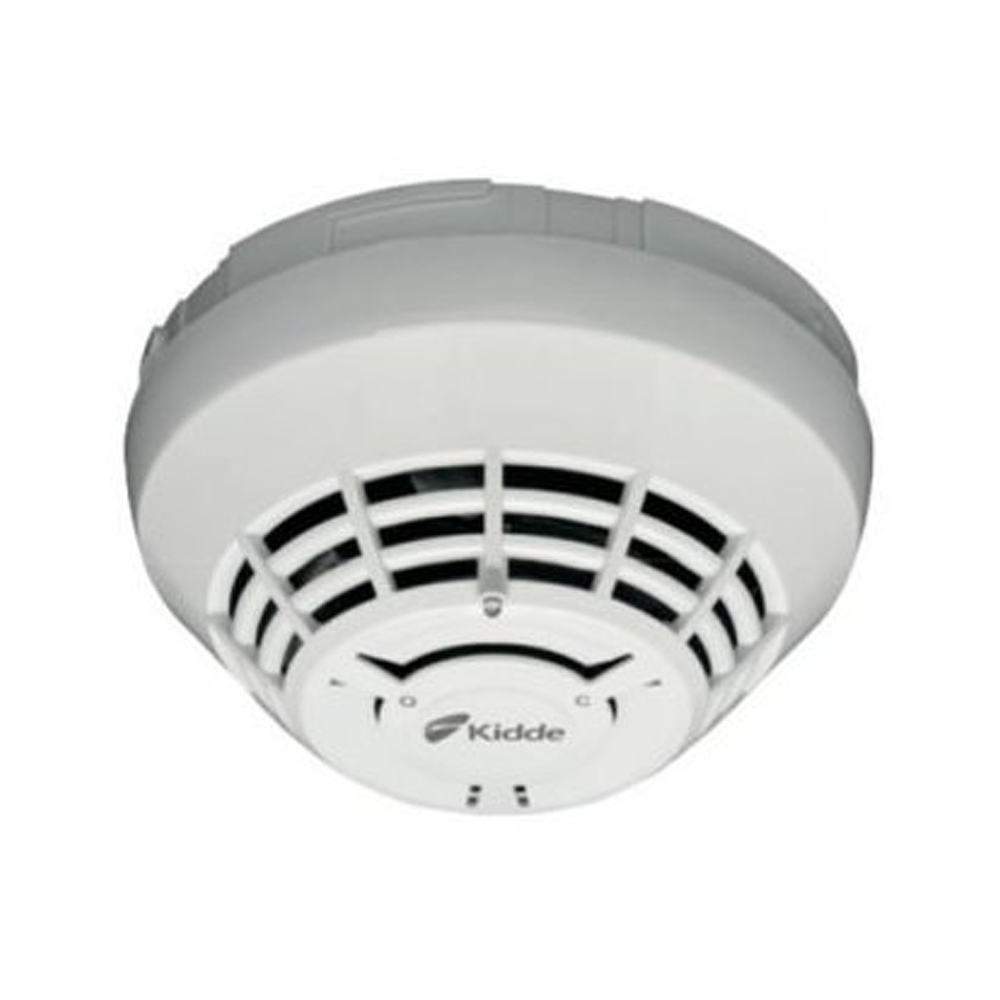

The Kidde KI-OSCD intelligent multi-criteria optical smoke detector represents advanced fire detection technology designed for comprehensive life safety protection in complex commercial environments. Engineered for high-precision smoke sensing, this addressable detector utilizes sophisticated algorithms to distinguish between genuine fire events and nuisance alarm conditions, delivering superior performance across challenging installation scenarios.
Optimized for integration with modern fire alarm control panels, the KI-OSCD provides comprehensive detection capabilities that exceed traditional point detection methods. Its intelligent multi-criteria design incorporates advanced optical sensing technology with multiple environmental analysis parameters, enabling rapid and accurate fire condition identification in diverse commercial and institutional settings such as office complexes, educational facilities, healthcare environments, and manufacturing spaces.
Key Features
- Advanced multi-criteria optical sensing with digital signal processing for enhanced fire detection accuracy
- Compatible with addressable fire alarm panels supporting intelligent detection protocols
- UL 268 and UL 2075 listed for comprehensive regulatory compliance
- Wide sensitivity range accommodating varying environmental conditions
- Low-profile design facilitating streamlined architectural integration
- Built-in drift compensation to maintain consistent performance over operational lifecycle
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: Minimal 250 µA
- Alarm Current: Maximum 5 mA
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
Engineered for compliance with NFPA 72 National Fire Alarm and Signaling Code requirements, the KI-OSCD detector supports comprehensive fire protection strategies across commercial and institutional applications. Its intelligent design enables seamless integration with networked fire alarm systems, providing reliable early detection and supporting critical life safety infrastructure.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 3 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Smoke Detector |
