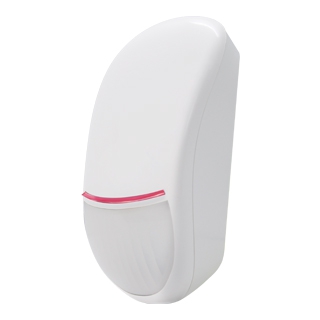

The DSC LC-200 Digital PIR Detector represents advanced motion detection technology specifically engineered for commercial fire alarm and security systems. Designed with professional installers and facilities managers in mind, this high-performance passive infrared (PIR) detector delivers precision detection capabilities across complex architectural environments, leveraging sophisticated optical technologies to minimize false alarms and maximize system reliability.
Engineered for comprehensive coverage in commercial settings such as office complexes, educational institutions, healthcare facilities, and industrial spaces, the LC-200 integrates cutting-edge Lodiff® optics and Poly IR® sensor technologies. Its intelligent design provides robust motion detection with sophisticated pet immunity, allowing deployment in areas with potential animal movement without compromising detection integrity.
Key Features
- Advanced 15-meter detection range with 100-degree field of view, ensuring comprehensive area coverage
- Pet immunity up to 15kg, reducing nuisance triggers in mixed-use commercial environments
- Built-in 5.6k end-of-line resistor compatible with PowerSeries NEO and PRO panels
- Integrated box and wall tamper protection for enhanced security system integrity
- Lodiff® optics technology providing superior signal processing and discrimination
- UL Listed and compliant with NFPA 72 fire alarm and signaling code requirements
Technical Specifications
- Detection Technology: Passive Infrared (PIR)
- Coverage Pattern: 15 meters, 100-degree horizontal
- Pet Immunity: Up to 15kg
- Mounting: Surface and corner mounting options
- Certifications: UL 268, UL 464, NFPA 72 compliant
- Panel Compatibility: DSC PowerSeries NEO and PRO addressable systems
Professional installers will appreciate the LC-200’s robust design, which seamlessly integrates with modern addressable fire alarm and security infrastructure. Its precision detection capabilities make it ideal for critical environments including commercial office buildings, educational campuses, healthcare facilities, manufacturing plants, and multi-tenant commercial complexes requiring reliable motion detection and intrusion monitoring.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 5 × 3 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
