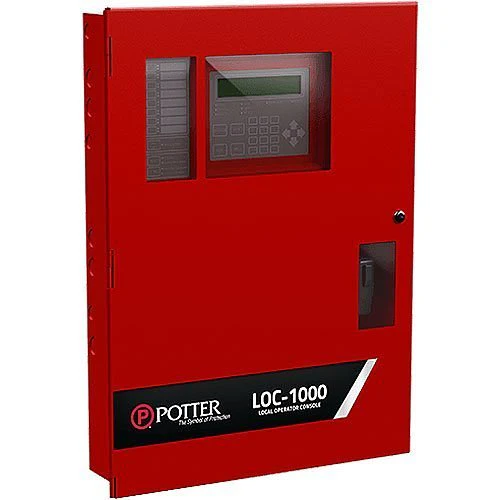

The Potter Electric Signal LOC-1000 is a Local Operator Console for Potter IPA-4000V voice evacuation systems. First, it lets operators control the fire and ECS system from remote areas of the building. As a result, building staff can manage paging, zone selection, and live voice from a satellite location. Furthermore, the LOC-1000 connects to the IPA-4000V via P-Link RS-485.
Potter Electric Signal LOC-1000 capabilities
The LOC-1000 supports several core operations. Specifically, operators can perform all-call paging, individual zone paging, and ECS message activation. In addition, the console accepts an auxiliary low-level audio source. Therefore, integrators can route background music or external announcements through the unit.
The auxiliary input accepts a 600-ohm, 1 VRMS, line-level audio signal. Furthermore, the input is supervised for fault detection.
Priority and scaling
An IPA-4000V can host up to thirty LOC-1000 consoles on the same P-Link bus. However, only one console controls the system at a time. Specifically, Potter Fire Programmer assigns each LOC-1000 a priority level. Therefore, the highest-priority active console takes control of paging and ECS.
The LOC-1000 ships with a built-in microphone for live voice. In addition, the chassis includes mounting space for an LOC-PSN1000 10 A power supply with a P-Link repeater. Specifically, the cabinet also accommodates an SCA-5070INT integrated amplifier. As a result, integrators can build a self-contained 50 W local operator console. Furthermore, the SCA-5070INT delivers four Class A or Class B speaker outputs.
Verified specifications
- Role: Local Operator Console for IPA-4000V Integrated Voice Panel
- Maximum LOC-1000 per IPA-4000V: 30
- Standby current: 77 mA
- Alarm current: 107 mA
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Operating humidity: maximum 93% non-condensing
- Auxiliary input: 600 ohm, 1 VRMS line level, supervised
- Communication: P-Link (RS-485) to IPA-4000V
- Cabinet dimensions (WxHxD): 21-3/8″ x 29-1/8″ x 4-7/8″
- Stock number: 3520661
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 10.67 lbs |
|---|---|
| Dimensions | 7 × 7 × 7 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Pull Station |
