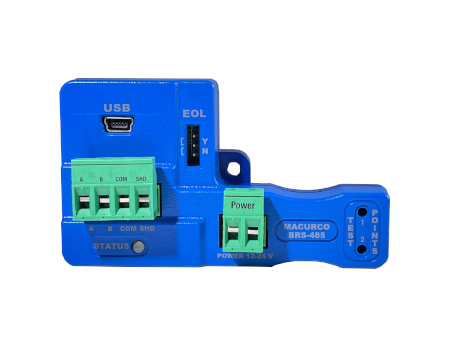

MACURCO (BRS-485) Multi-protocol RS-485 Adapter for use w

The Macurco BRS-485 is a multi-protocol RS-485 adapter for Macurco 6-Series fixed gas detectors. Specifically, it converts the detector’s 4-20 mA analog output into a digital signal for building management systems.

First, the adapter snaps onto the back of the 6-Series detector with a single screw. Then, it shares the detector’s power and 4-20 mA terminals. As a result, no separate power supply or wiring is needed.

In addition, the BRS-485 monitors sensor type, gas level, and trouble status. Furthermore, it supports four BMS protocols on the same hardware. Therefore, one adapter SKU fits Modbus, BACnet, Metasys, and Siemens FLN installations.

Macurco BRS-485 Key Features

• Converts Macurco 6-Series 4-20 mA output to digital RS-485
• Operates as Modbus RTU Slave, BACnet MSTP Server, Metasys N2 Slave, or Siemens FLN Slave
• Tricolor LED indicates power, test, and communication status
• USB connection for address and protocol configuration
• Powered from the detector — no separate supply required
• Mounts to the back of the 6-Series detector with one screw

Communication Specifications

• Electrical interface: two-wire EIA/TIA-485 standard
• Transmission mode: Modbus RTU
• Supported BMS protocols: Modbus, BACnet MSTP, Johnson Metasys N2, Siemens FLN
• Configuration: USB connection on the adapter
• Compatible detectors: Macurco 6-Series fixed gas detectors

Where the BRS-485 Fits

First, BAS integrators use the BRS-485 to bring legacy 4-20 mA gas detectors onto a digital riser. Also, it pairs with Macurco DVP-1200 panels for centralized monitoring. As a result, sites can deploy one detector model and still match each customer’s preferred BMS protocol.

Order or Get Application Help

Life Safety Consultants stocks the Macurco BRS-485 along with compatible 6-Series detectors. To order or to confirm protocol mapping for your BMS, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
