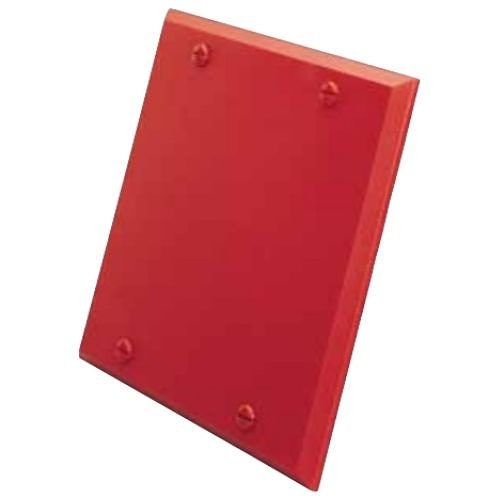

The System Sensor MDL3R is a Sync•Circuit module in a red housing. It synchronizes SpectrAlert and SpectrAlert Advance notification appliances. As a result, horns, chimes, and strobes activate in unison.
What the System Sensor MDL3R Does
First, the module synchronizes temporal-coded horns and chimes. Then it also synchronizes strobe flash timing. In addition, it can silence horns and chimes over a two-wire circuit while strobes stay active.
Furthermore, the MDL3R powers and synchronizes two 3-amp circuits wired Class B. Alternatively, it powers one 3-amp circuit wired Class A. As a result, it fits a range of notification layouts.
Specifications
- Output: two 3 A Class B circuits, or one 3 A Class A circuit
- At 12 V: 10 mA average, 50 mA peak, 100 mA in-rush
- At 24 V: 12 mA average, 60 mA peak, 120 mA in-rush
- Expandable by interconnecting slave input and output terminals
- UL 864 listed
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 6 × 6 × 2 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Module |
