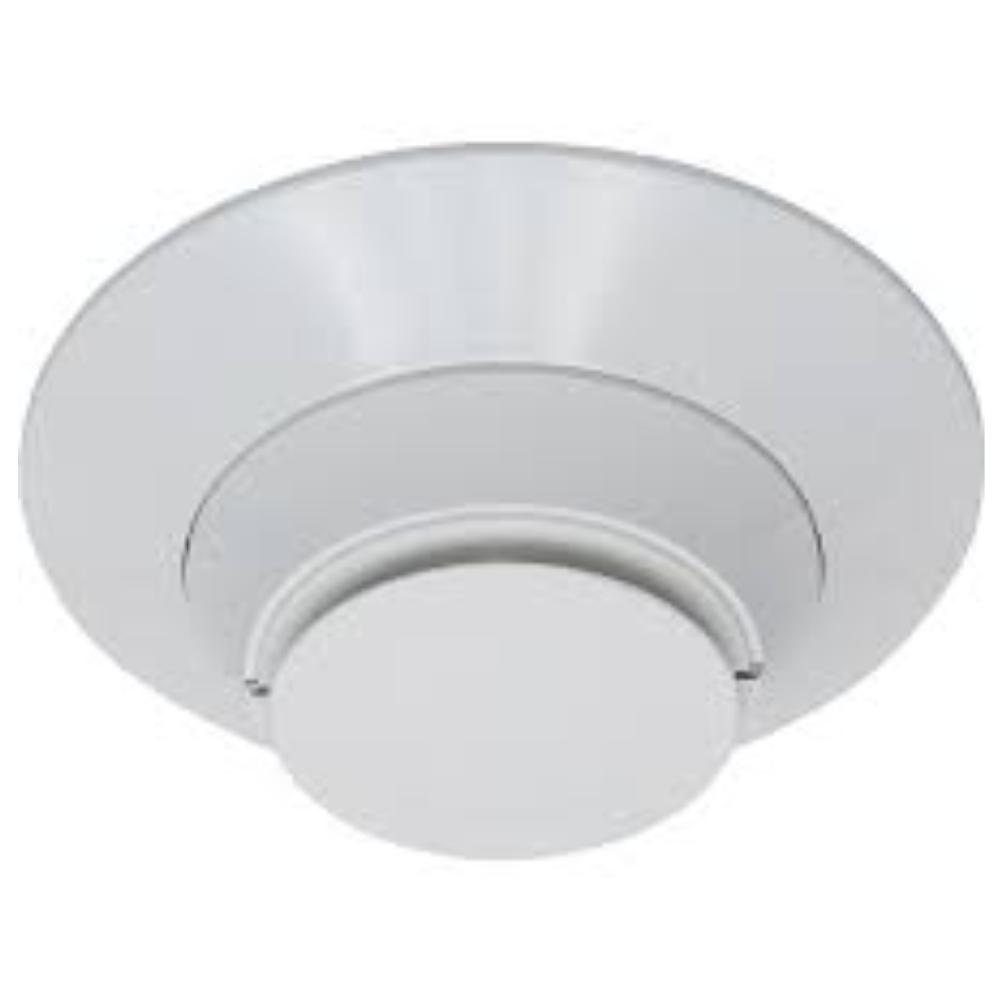

The Mircom MIX-2351TAP is a multi-criteria photoelectric smoke detector with built-in thermal sensing. First, it uses a photoelectric chamber for smoke. Then, dual electronic thermistors monitor heat at a 135°F (57°C) fixed point.
In addition, the TAP variant adds the thermal sensor to the standard MIX-2351 photoelectric platform. As a result, you get two detection technologies in one head.
Mircom MIX-2351TAP Protocol
The detector uses Mircom’s Advanced Protocol. Specifically, this is a high-speed addressable protocol. Therefore, communication between detector and panel is faster than legacy CLIP-style protocols.
However, the MIX-2351TAP is Mircom-protocol specific. Therefore, it is not interchangeable with Notifier, Simplex, EST, or other-brand addressable loops.
Key Features
- Photoelectric smoke + 135°F (57°C) fixed-temperature thermal multi-sensor
- Dual electronic thermistors for the heat element
- Mircom Advanced Protocol addressable
- Programmable sensitivity (set via host panel software)
- LED status indicator
- Re-designed optical sensing chamber for nuisance-alarm rejection
Listings
- ANSI/UL 268, 7th Edition (smoke)
- ANSI/UL 521 (heat)
- CAN/ULC S529 Rev 4 (smoke)
- CAN/ULC S530 (heat)
Order the Mircom MIX-2351TAP
Life Safety Consultants stocks the Mircom MIX-2351TAP for FleX-Net systems and Mircom Advanced Protocol loops. To verify base compatibility and panel firmware, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 2 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Photoelectric Smoke Detector |
