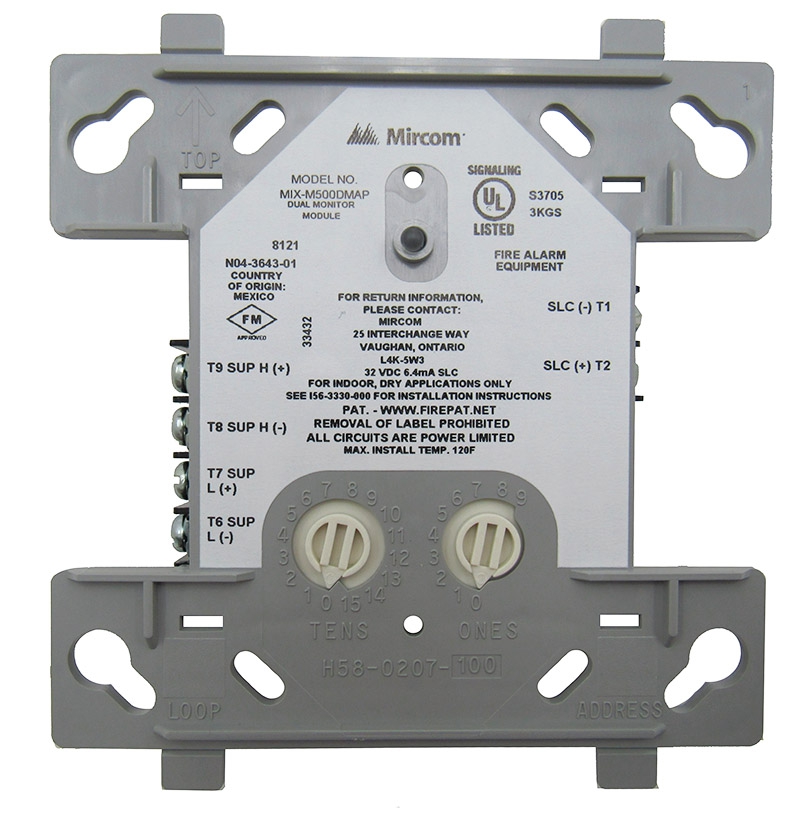

The MIRCOM MIX-M500DMAP Intelligent Dual Input Monitor Module represents advanced fire alarm system integration technology for commercial and institutional environments. Designed for precise supervision of non-latching contact devices, this module provides critical interface capabilities between conventional input devices and addressable fire alarm control panels. Ideal for integrating auxiliary circuits, zone monitoring, and supervisory signal management in complex fire detection networks.
Engineered to meet stringent UL 864 and NFPA 72 requirements, the MIX-M500DMAP delivers robust performance across diverse building management applications. Its intelligent design allows seamless communication within addressable Mircom fire alarm systems, enabling precise device identification and comprehensive monitoring of critical infrastructure components such as HVAC shutdown circuits, damper controls, and emergency system interfaces.
Key Features
- Dual input monitoring capability with individual address assignment for each input channel
- Compatible with Class B/Style B wiring configurations for enhanced system flexibility
- Supports normally open (N/O) contact devices with high-reliability signal processing
- Direct mounting in standard 4″ square electrical backboxes without additional adapters
- Low standby current consumption for optimized system power management
- Fully listed for use in comprehensive fire alarm and emergency notification systems
Specifications
- Operating Voltage: 24V DC nominal
- Standby Current: Less than 500µA per module
- Mounting: 4″ Square Electrical Backbox
- Agency Listings: UL, CSFM, MEA
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
Typical installation environments include commercial office buildings, healthcare facilities, educational campuses, and industrial complexes where comprehensive fire system monitoring is critical. The MIX-M500DMAP provides reliable interface capabilities for connecting auxiliary devices like water flow switches, tamper switches, and other supervisory input mechanisms to addressable fire alarm control panels.
Compatibility is assured with most modern addressable fire alarm control platforms, ensuring seamless integration and simplified system design for fire alarm contractors and technicians. Rigorous factory testing guarantees consistent performance across diverse environmental conditions and installation scenarios.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 0.5 × 2.7 × 1.7 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Monitor Module |
