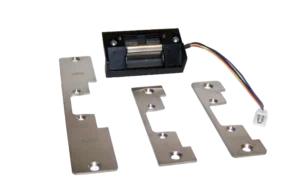

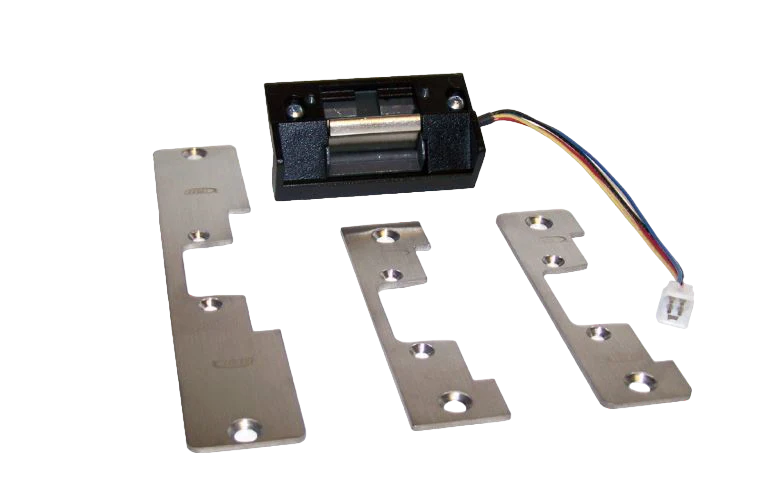

The Mircom S65ULMKM is a universal electric door strike with built-in Latch Monitor and Keeper Monitor (LMKM). It fits S6504, S6508, and S6514 frame profiles with a 5/8″ by 32D face.
First, set the lock mode in the field — Fail Safe or Fail Secure — with the adjustment screw. Then, pick the input voltage to match your supply: 12 VDC, 24 VDC, or 12–24 VAC. As a result, a single SKU covers most cylindrical, mortise, and exit-device retrofits.
Mircom S65ULMKM Verified Specifications
- Profile: 5/8″ wide × 32D-style face, ¾” latch projection
- Mode: field-selectable Fail Safe or Fail Secure
- Voltage (field selectable): 12 VDC, 24 VDC, or 12–24 VAC
- Current draw: 0.375 A @ 12 VDC continuous · 0.190 A @ 24 VDC continuous
- Monitoring: built-in Latch Monitor and Keeper Monitor (NO/NC contacts)
- UL 1034 Burglary Resistant listed
- UL listed for 1,500 lb static strength
- 3-year manufacturer warranty
Where It Fits
The S65ULMKM serves hollow-metal and wood frames. In addition, it works with cylindrical locksets, mortise locks, and mortise exit devices. Therefore, it streamlines stockroom inventory across mixed-door buildings.
Order or Get Application Help
Life Safety Consultants stocks the Mircom S65ULMKM for fast shipment. To confirm fit with your existing strike pocket, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 10 × 3 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Replacement Part |
