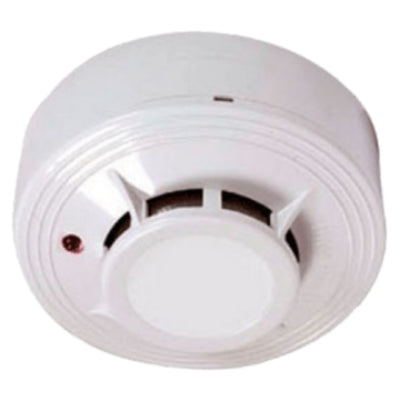

The Mircom SD-2WP-LED represents a professional-grade two-wire photoelectric smoke detector designed for comprehensive fire detection in commercial and institutional environments. Engineered for reliable performance with addressable fire alarm control panels, this detector provides advanced smoke sensing capabilities with integrated LED indication, making it ideal for complex life safety systems in office buildings, educational facilities, healthcare complexes, and industrial applications.
Compatible with 24VDC control circuits, the SD-2WP-LED utilizes advanced photoelectric sensing technology to detect slow, smoldering fires that may develop in electrical equipment, furnishings, and concealed spaces. Its sophisticated optical chamber can distinguish between actual fire conditions and nuisance sources, reducing false alarm potential while maintaining critical detection sensitivity across varied environmental conditions.
Key Features
- Two-wire addressable configuration supporting seamless integration with modern fire alarm panels
- Built-in LED indicator for visual alarm and maintenance status monitoring
- Photoelectric sensing technology optimized for early smoke detection
- Low-profile design facilitating discrete mounting in commercial and institutional settings
- UL 268 and NFPA 72 compliant for reliable performance and code adherence
- Temperature-compensated sensing algorithm minimizes environmental interference
Specifications
- Operating Voltage: 24VDC
- Current Draw: Typical standby current < 250µA
- Operating Temperature Range: 32°F to 100°F (0°C to 38°C)
- Humidity Tolerance: 10% to 93% non-condensing
- Mounting Base: Standard 4″ electrical box compatible
Designed for professional fire alarm installers and facility safety managers, the Mircom SD-2WP-LED delivers precision detection with robust reliability. Its compatibility with addressable notification appliance circuits makes it a versatile solution for retrofit and new construction fire alarm system deployments across commercial, institutional, and industrial environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 2 × 3 × 4.6 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Replacement Part |
