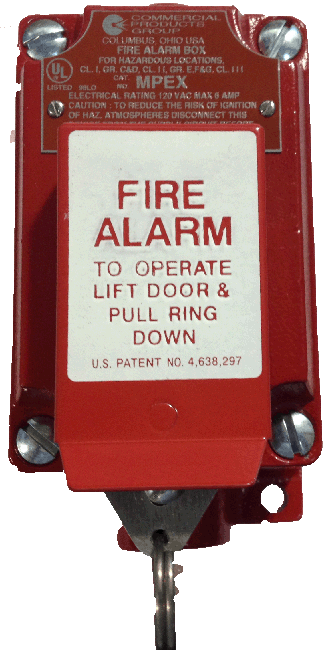

The Potter Electric Signal MPEX Explosion Proof Manual Station represents a critical life safety solution for high-risk industrial and commercial environments where standard fire alarm components cannot safely operate. Engineered for hazardous locations with potential explosive atmospheres, this rugged pull station provides reliable emergency notification in challenging environments such as petrochemical facilities, chemical processing plants, manufacturing zones, and offshore marine installations.
Designed to withstand extreme conditions, the MPEX manual station offers robust protection against potential ignition sources while maintaining full fire alarm system functionality. Its explosion-proof enclosure meets stringent safety standards, ensuring dependable performance in Class I, Division 1 and Division 2 hazardous locations where traditional pull stations would pose significant risk.
Key Features
- Certified explosion-proof design for Class I, Division 1 and 2 Group C and D hazardous locations
- Heavy-duty aluminum alloy construction with corrosion-resistant epoxy powder coating
- SPDT switch configuration compatible with most addressable and conventional fire alarm control panels
- Simple, single-action activation mechanism with mechanical backstop to prevent accidental tripping
- Compliant with NFPA 72, UL 38, and UL 1638 safety standards
- IP66 rated environmental protection against dust, water, and extreme temperature variations
Specifications
- Operating Temperature Range: -40°F to 150°F (-40°C to 66°C)
- Switch Rating: 5A @ 125/250VAC
- Dimensions: 6.3″ x 4.5″ x 3.2″ (160mm x 114mm x 81mm)
- Weight: 3.5 lbs (1.6 kg)
- Mounting: Surface or flush mount options available
Ideal for industrial applications requiring exceptional reliability, the Potter Electric Signal MPEX manual station integrates seamlessly with most fire alarm control systems. Typical installation environments include refineries, chemical plants, offshore platforms, grain processing facilities, paint manufacturing areas, and other locations with potentially explosive atmospheric conditions.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.75 lbs |
|---|---|
| Dimensions | 7.65 × 5.75 × 4 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Pull Station |
