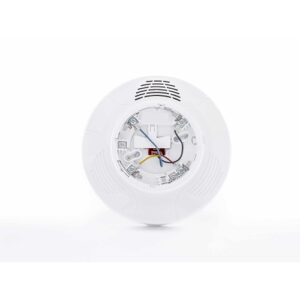

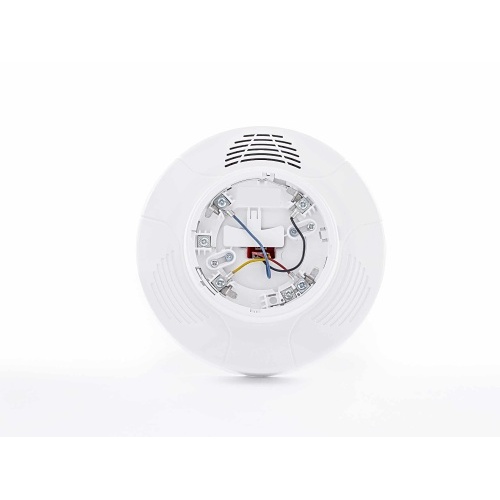

The Secutron MRI-4003-S is a sounder base for MRI-4000 Series addressable fire detectors. It is a base, not a smoke detector — the detector head is purchased separately. The base adds localized alarm sounding at the detector location. As a result, it can replace separate external sounders in many layouts.
Secutron MRI-4003-S Specifications
- Nominal voltage: regulated 24 VDC/VFWR
- SLC current: 1.56 mA standby; 2.34 mA alarm
- Sounder current: 18–22 mA at regulated 24 VDC, by tone and volume
- Sound output: approximately 84 dBA at 10 ft (UL reverberant, high volume)
- Tone patterns: Temporal (NFPA 72 three-pulse), Continuous, 20 BPM, March
- Volume: two levels, high and low
- Dimensions: 7-3/16 in (182 mm) diameter; 1-1/4 in (32 mm) height
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Wiring: 12 to 22 AWG terminals
Compatibility and Configuration
The base accepts MRI-4000 Series detector heads. For example, MRI-4010 photoelectric, MRI-4020 multi-sensor, and MRI-4030 heat detectors all dock onto it. However, it must be used with a compatible Secutron fire alarm control unit. Tone and volume are configured at the panel using the MGC MP configuration tool. The base carries UL, ULC, and CSFM listings.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 9 × 8.5 × 3.5 in |
| Condition | New |
| Manufacturers | Secutron |
| Part Type | Photoelectric Smoke Detector |
