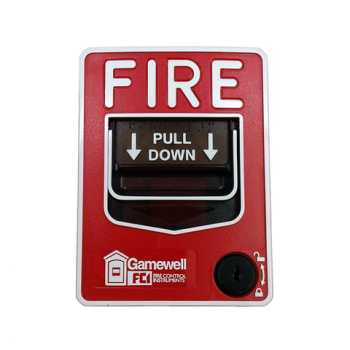

The Gamewell MS-7S is the conventional single-action manual pull station with wire leads. First, it installs on the Initiating Device Circuit of any UL-listed conventional fire alarm control panel. In addition, the wire leads make it the right choice when the cabinet does not provide a terminal landing for the station. As a result, the MS-7S is a drop-in replacement for legacy MS-7 stations using wire-lead drops.
Gamewell MS-7S features
The MS-7S uses a set of single-pole contacts wired to a normally-open initiating circuit. Furthermore, all MS-7 Series pull stations include a key lock/reset keyed alike with Gamewell-FCI fire alarm control panels and other MS-7 stations. Also, operating instructions and Braille text are engraved in the handle for accessibility.
Therefore, the MS-7S pairs with conventional MS-7 (double-action) and MS-7SP (bilingual double-action) stations on the same circuit. In addition, the housing is Lexan and is shock and vibration resistant.
Compliance
The MS-7S complies with ADA’s 5 lb maximum pull force requirement. Also, the MS-7 Series is built to UL 864 9th Edition. In addition, the series carries UL S2465, FM 3023594, MEA FDNY 67-02-E Vol. VII, and CSFM 7160-1703:0119, 0170, and 0109 listings.
Specifications
- Manufacturer: Gamewell-FCI (Honeywell)
- Model: MS-7S (conventional single action, wire leads)
- Material: Lexan
- Mounting: surface or semi-flush on double-gang or 4″ square electrical box
- Wiring: wire leads (single-pole contacts)
- Contact rating: 0.25 A at 30 VAC/VDC (resistive)
- Dimensions: 5-5/8″ H x 4-1/4″ W x 1-1/4″ D (14 x 10.1 x 3.2 cm)
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Standards: UL 864 9th Edition
- Listings: UL S2465, FM 3023594, MEA FDNY 67-02-E Vol. VII, CSFM 7160-1703:0119 / 0170 / 0109
- Related parts: MS-7 (conventional double action, screw terminals), MS-7SP (English/Spanish double action), SB-10 surface backbox, BG12TR semi-flush trim ring, NY-PLATE NYC backplate
Order the Gamewell MS-7S from Life Safety Consultants
Specify the MS-7S for single-action conventional pull stations with wire-lead drops. Also, Life Safety Consultants stocks the matching backboxes, trim rings, and NYC backplates from the MS-7 Series.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.14 lbs |
|---|---|
| Dimensions | 2 × 5 × 6 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Duct Detector |
