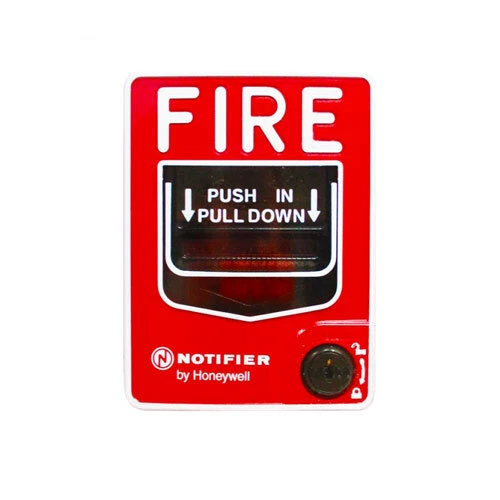

The Notifier NBG-12LPS is a non-coded, dual-action manual pull station with a pre-signal feature. First, pushing in and pulling down the dual-action handle activates the pre-signal alarm initiating signal. Then, an authorized user can trigger the general alarm via a momentary rocker switch mounted inside the unit. As a result, building staff can stage an investigation before initiating full evacuation.
This station ships in red polycarbonate with white raised lettering. In addition, it includes a key-lock reset for authorized resetting. Furthermore, the unit ships with a Notifier key. Also, the terminal-block wiring accepts up to 12 AWG.
Notifier NBG-12LPS specifications
- Two normally open contact outputs (pre-signal + general alarm)
- Switch contacts rated 0.25 A at 30 VAC or 30 VDC
- 5 lb maximum pull force — meets ADA Section 4.27
- Operating range: 32°F to 120°F (0°C to 49°C)
- Humidity: 10% to 93% RH non-condensing
- Listings: UL 38, ULC, CSFM (per Notifier DN-6643)
- Color: red with white raised lettering
Mounting and ordering notes
The NBG-12LPS mounts to a 4-inch square double-gang backbox for flush installation. Alternatively, the SB-10 or SB-I/O surface backbox supports a surface install. However, the SB-10 / SB-I/O is ordered separately and is not included.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Relay Module |
