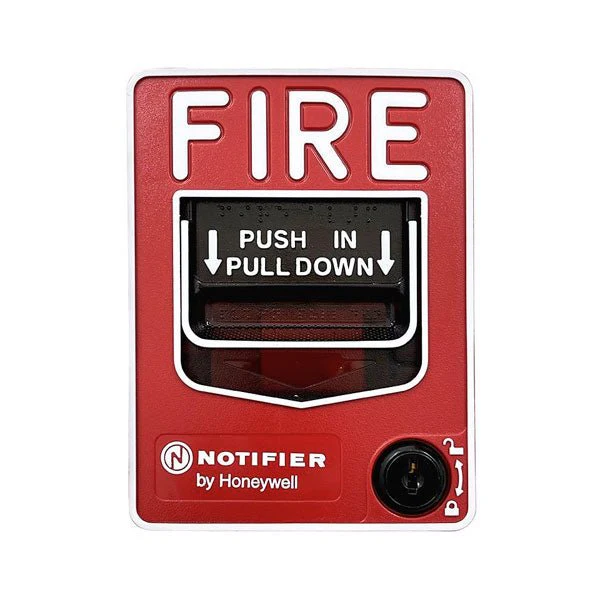

The Notifier NBG-12LO is a red dual-action manual fire alarm pull station listed for outdoor applications. It is a non-coded, conventional pull station with a key-lock reset and screw-terminal connections. Specifically, the outdoor listing applies when paired with an approved backbox (typically the SB-I/O) and the supplied sealing gasket.
This pull station is built for harsh exterior locations. Common applications include parking structures, loading docks, outdoor corridors, and industrial yards. In addition, the dual-action design — push in, then pull down — prevents accidental activation from a casual bump.
How the Notifier NBG-12LO operates
First, push the handle inward, then pull down to latch the alarm switch. Then, the word “ACTIVATED” appears at the top of the handle in bright yellow. As a result, the activated state is visible from across the room.
To reset the station, insert the supplied key and turn a quarter turn. Furthermore, opening the cover returns the handle to its normal position. Also, the molded handle includes Braille text and directional arrows for ADA accessibility.
Important ordering note
Per the Notifier NBG-12 datasheet, the NBG-12LO is not sold separately. It ships as part of the NBG-12LOB combination: NBG-12LO + SB-I/O backbox + sealing gasket. Therefore, the outdoor application listing applies to the NBG-12LOB combination only. Also, the NBG-12LO fits the WP-10 weatherproof backbox in retrofit installs.
Verified specifications
- Type: non-coded conventional dual-action manual pull station
- Color: red
- Reset: key lock (uses 17021 key set, 2 keys included with NBG-12LOB)
- Switch: SPST normally open, screw terminals (up to 12 AWG)
- Switch contact rating: 0.25 A @ 30 VAC or VDC (gold-plated)
- Activation force: 5 lb maximum (meets ADA / ADAAG §4.1.3[13])
- Construction: durable polycarbonate (Lexan equivalent)
- Pull-station dimensions: 5.500″ H × 4.121″ W × 1.390″ D (13.97 × 10.47 × 3.53 cm)
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: 10%–93% non-condensing
- Approved backbox (outdoor listing): SB-I/O (plastic, indoor/outdoor) with sealing gasket; also fits WP-10
Agency listings
- C(UL)US Listed: file S692 (UL 38 Manually Actuated Signaling Boxes)
- CSFM: 7150-0028:199
- FM Approved
- MEA: 67-02-E
- Lloyd’s Register: 93/60141 (E3)
- U.S. Coast Guard: 161.002 series (with AFP-200, NFS-640, AFP1010/AM2020)
Order the Notifier NBG-12LO
Life Safety Consultants stocks the Notifier NBG-12LOB combination for outdoor installs. The 17021 replacement key set and the BG12TR trim ring are also available. To confirm fit with your conventional FACP, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 6 × 9 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Replacement Part |
