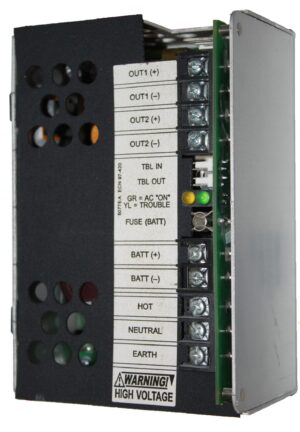

Notifier (APS-6R) 6.0 Amp Auxiliary Power Supply
The Notifier APS-6R is a state-of-the-art, 150-watt switching auxiliary power supply. It delivers 24 VDC of filtered DC power through two 24 VDC output circuits. Each circuit is rated for 3.0 Amps in alarm and 2.0 Amps continuous.
The APS-6R powers peripheral audible/visual devices (alarm signaling appliances) and is compatible with the following NOTIFIER control panels: AM2020, AFP1010, NFS-3030, NFS-640, AFP-400, AFP-300, AFP-200, System 5000, and System 500.
FEATURES
- Lightweight, compact design
- “Off-line” switching technology
- Forward topology
- Unique design – magnetic flux-sensed converter eliminates need for opto-coupler feedback
- 120 or 240 VAC (@ 50/60 Hz) field-selectable
- Wide input voltage range: 90–132 VAC, 180–264 VAC
- High efficiency
- Output circuits with overload protection
- Built-in “brown-out” circuitry
- Diagnostic trouble LED
- Plug-in connector for in-cabinet applications; screw terminals for remote device applications
- Shares battery and charger circuit with control panel
- Power-limited design, per UL requirements
- Surface-mount technology conserves panel space
- AC Fail supervision with field-selectable delay per UL 864
- Heavy-duty clamp-type terminals accept up to 12 AWG (3.1 mm²) wire
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6.125 × 4.25 × 3 in |
