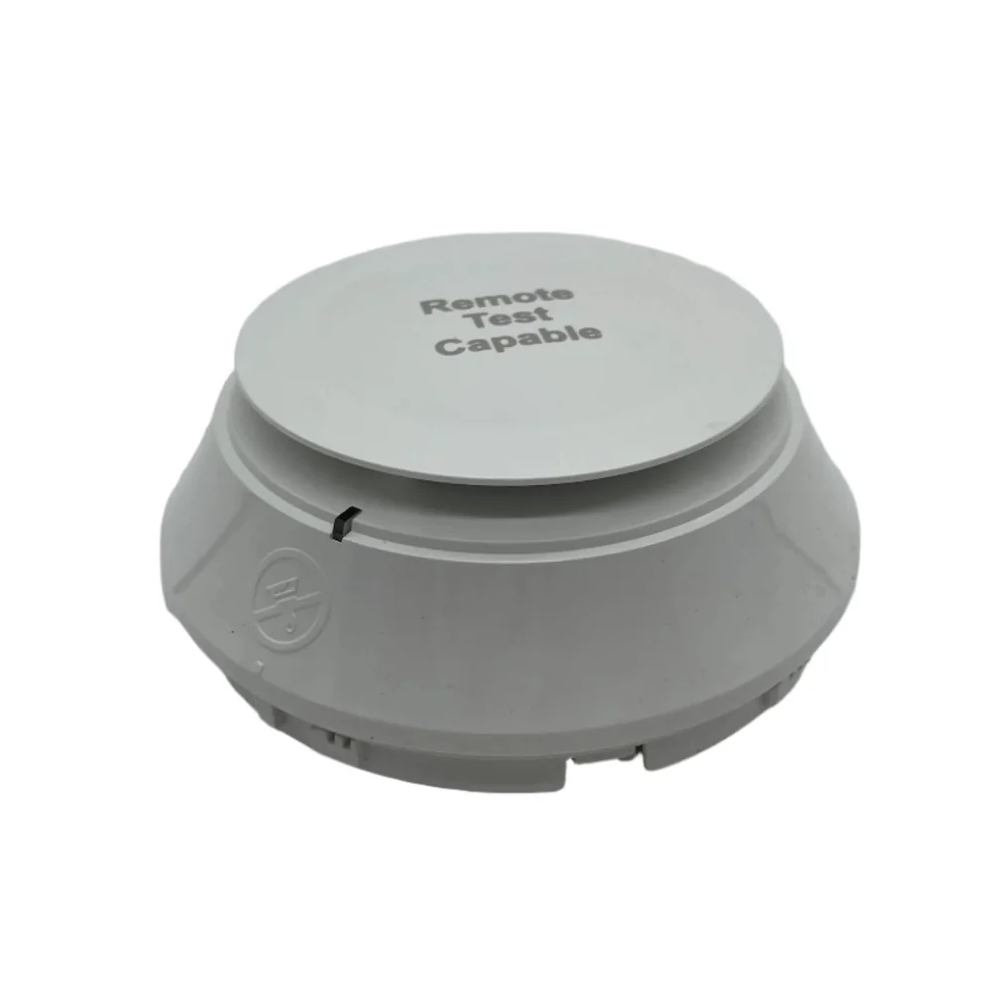

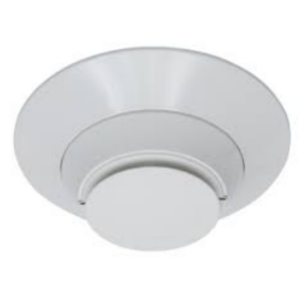

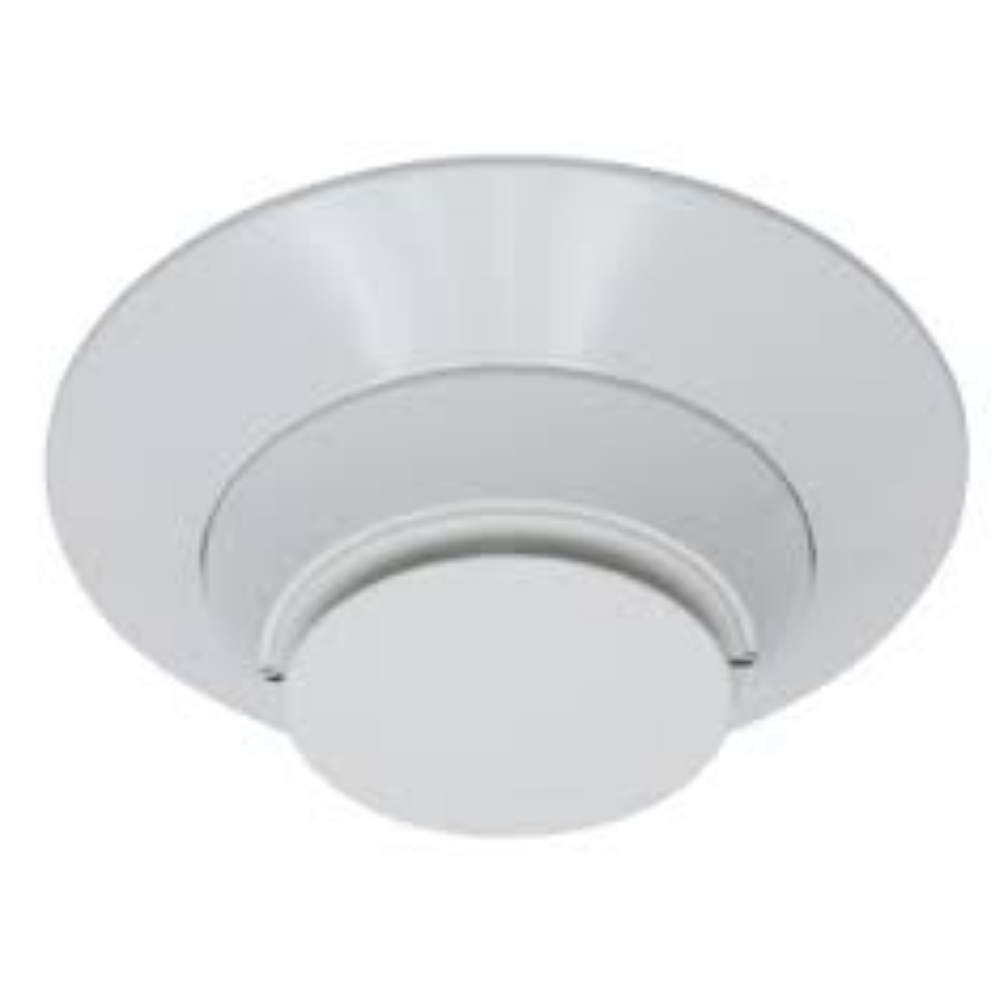

The Notifier FSP-951R Photo Sensor Head represents advanced photoelectric smoke detection technology designed for sophisticated commercial fire alarm systems. Engineered for precision and reliability, this white sensor provides comprehensive smoke detection capabilities across complex facility environments, from multi-story office complexes to healthcare facilities and educational institutions.
Utilizing state-of-the-art photoelectric sensing technology, the FSP-951R delivers exceptional early smoke detection by measuring light scatter within its detection chamber. The sensor’s advanced design allows for reliable differentiation between actual fire conditions and nuisance alarm triggers, ensuring critical life safety performance in addressable fire alarm networks.
Compatible with Notifier intelligent addressable fire alarm panels, the FSP-951R integrates seamlessly into comprehensive fire detection systems, offering enhanced diagnostic capabilities and precise location reporting for rapid emergency response.
Key Features
- Remote test capability for simplified maintenance and verification without physical ladder access
- Low-profile white design supporting aesthetic integration into commercial ceiling environments
- Addressable communication protocol compatible with major Notifier intelligent fire alarm panels
- Advanced photoelectric sensing technology minimizes false alarm potential
- NFPA 72 and UL 268 listed for guaranteed performance standards
- Wide sensitivity range adaptable to varying environmental conditions
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: Less than 250 µA
- Alarm Current: Approximately 6 mA
- Operating Temperature: 32°F to 100°F (0°C to 38°C)
- Relative Humidity: 10% to 93% non-condensing
- Base Compatibility: Standard 4-inch addressable bases
Ideal installation environments include commercial office buildings, healthcare facilities, educational campuses, data centers, and other sophisticated environments requiring precise, intelligent smoke detection. The FSP-951R delivers exceptional performance within HVAC-integrated fire alarm systems, providing comprehensive coverage and rapid threat identification.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 4.25 × 4.25 × 2 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Sensor |
