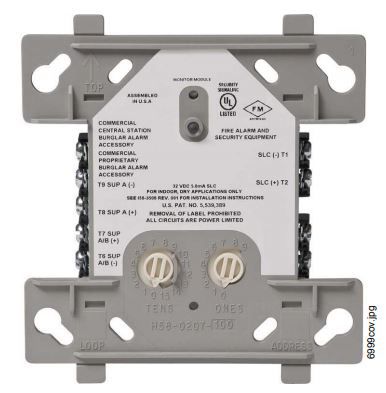

NOTIFIER (NZM-100-6) 6-Input (Class B) Or 3-Input (Class A) 2

The Notifier NZM-100-6 is a six-zone interface module. It connects conventional two-wire detection zones to an addressable system. First, it monitors up to six zones in Style B (Class B) wiring. Alternatively, it supports three zones in Style A (Class A) wiring.

This module works with the Notifier FireWarden Series signaling line circuit (SLC). As a result, each conventional zone gains a supervised address. Furthermore, it requires resettable 24 VDC power for the two-wire detectors.

Notifier NZM-100-6 wiring and mounting

A 3.9K end-of-line resistor supervises the NZM-100-6 circuit. Therefore, the panel detects faults on each monitored zone. In addition, you can mount one or two units in a BB-XP cabinet. Alternatively, mount up to six on a CHS-6 chassis in a CAB-3 or CAB-4 series cabinet.

This design folds legacy two-wire detectors into a FireWarden addressable panel. However, confirm compatible devices and quantities in the Notifier Device Compatibility Document.

Verified details

• Type: six-zone addressable interface module for conventional two-wire detectors
• Zones: 6 inputs (Style B / Class B) or 3 inputs (Style A / Class A)
• Power: requires resettable 24 VDC for the two-wire detectors
• Supervision: 3.9K end-of-line resistor (included)
• Mounting: BB-XP cabinet, or CHS-6 chassis in a CAB-3/CAB-4 cabinet
• Compatibility: Notifier FireWarden Series addressable panels

Finally, the NZM-100-6 extends an addressable panel to conventional zones. Therefore, it protects existing two-wire detection investments.
