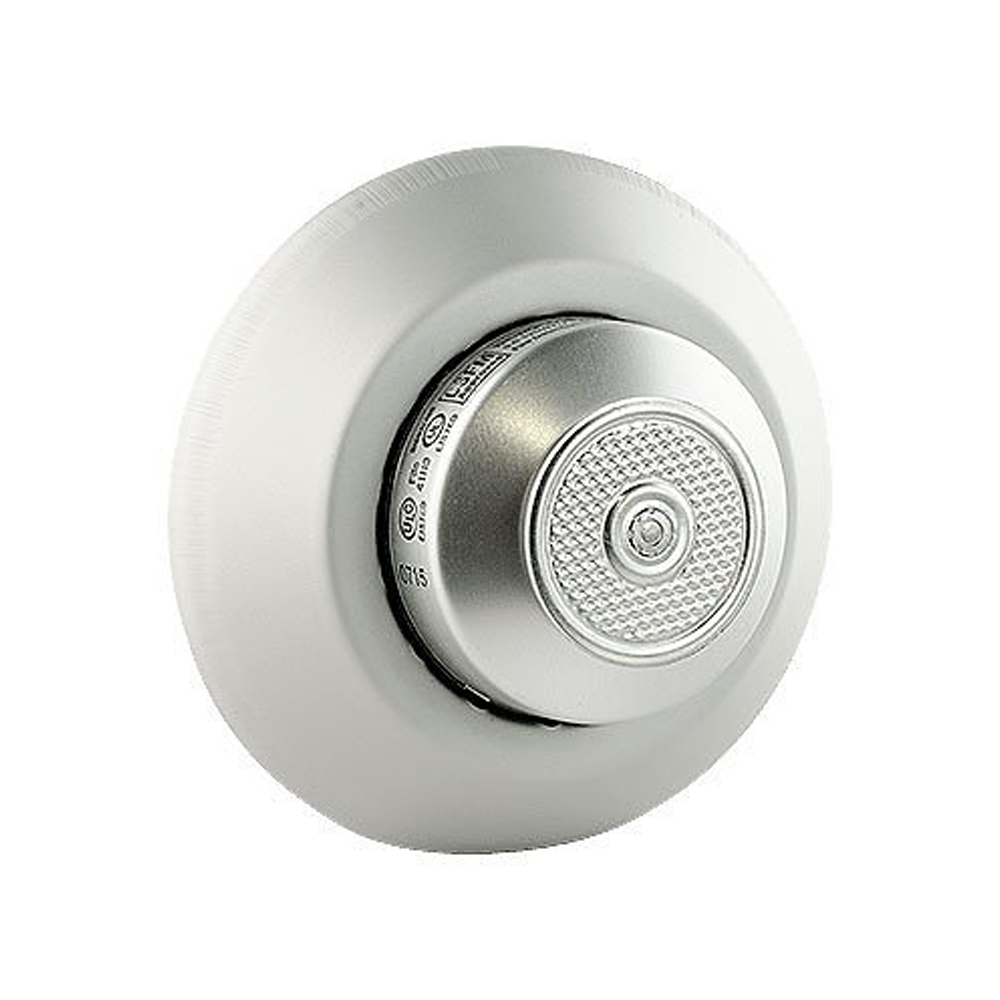

The POTTER CR-135-MP is a 135°F rate-of-rise heat detector for fire protection systems. It belongs to Potter’s THERMOFLEX CR-MP series. Specifically, this model uses dual-action sensing for a fast, reliable response. First, a fixed 135°F element triggers at the rated temperature. In addition, a rate-of-rise element responds when heat climbs about 15°F per minute. As a result, the detector catches both rapid and slow-building heat events.
Sealed Design of the POTTER CR-135-MP
The MP version is built for damp or corrosive areas. Notably, its contacts connect through pigtail leads that exit a sealed plate. Therefore, moisture and corrosion stay away from the wiring terminals. This conventional detector uses a single circuit with normally open contacts. Also, a fusible link locks the contacts in alarm once the fixed temperature is reached.
Specifications
- Fixed temperature alarm point: 135°F
- Rate-of-rise: approximately 15°F per minute
- Contacts: single circuit, normally open
- Connection: sealed pigtail leads through a seal plate
- Listed spacing: up to 70 ft between detectors
- Type: conventional (non-addressable) heat detector
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6.75 × 5.25 × 4 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Heat Detector |
