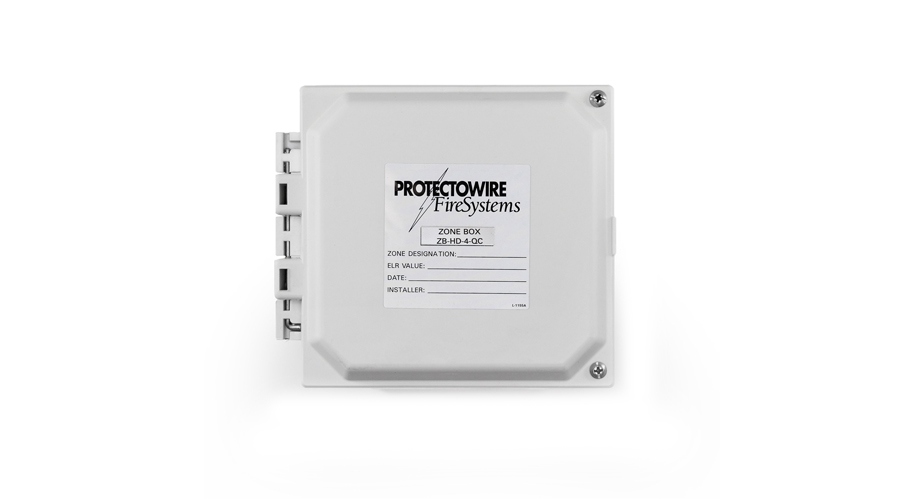

The Protectowire ZB-HD-4-QC is a heavy duty zone box for linear heat detectors. Specifically, it is a fiberglass NEMA-4X (IP66) junction box with PWSC compression terminals. Moreover, it is built for highly corrosive atmospheres. As a result, it protects detector terminations in demanding environments.
Protectowire ZB-HD-4-QC specifications
First, the box measures 6 inches high by 6 inches wide by 4 inches deep. In addition, it is molded from reinforced polyester with excellent chemical resistance. It operates from -40°F to +266°F (-40°C to +130°C). Also, it weighs about 2.0 pounds. The cover uses #10-32 brass inserts with stainless steel captive screws.
Compatibility and installation
The ZB-HD-4-QC is compatible with all Protectowire controls. Then connect copper feed conductors in the #18 to #14 AWG range. However, keep all detector bends at a radius of at least 2.5 inches. Therefore, order SR-502 strain relief connectors separately, since boxes ship without them. Finally, install the box no more than six feet above the floor.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.9 lbs |
|---|---|
| Dimensions | 9 × 8 × 6.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Interface Module |
