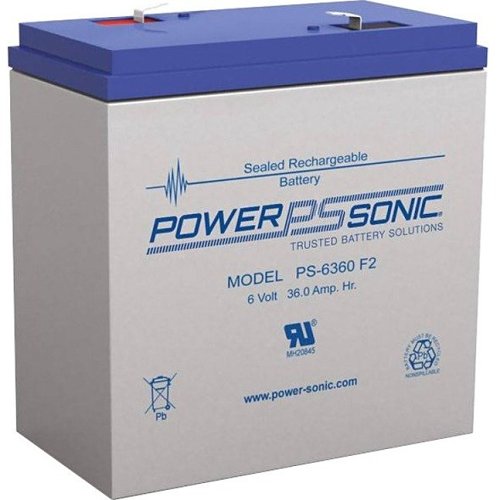

The Power Sonic PS-6360 F2 is a 6V, 36 Ah sealed lead acid (SLA / VRLA) battery. Specifically, it ships with F2 (0.250″ / 6.35 mm) quick-disconnect tabs. First, it provides higher-capacity standby and light-cyclic power for fire alarm systems, UPS, and emergency lighting. Then, the AGM design is non-spillable and maintenance-free.
How the Power Sonic PS-6360 F2 is used
Therefore, integrators choose the PS-6360 for a 6V/36Ah SLA. Also, pair two in series for a 12V/36Ah load. Also, F2 tabs handle higher current than F1. In addition, the AGM construction allows installation in any orientation. As a result, the PS-6360 F2 suits larger fire-system backup loads and standalone emergency lighting inverters.
PS-6360 F2 product details
- Nominal voltage: 6.0 V (3 cells)
- Nominal capacity: 36.0 Ah at 20-hr rate (33.5 Ah at 10-hr)
- Terminals: F2 quick-disconnect tab (0.250″ / 6.35 mm)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS
- Dimensions: 6.25 in (L) × 3.35 in (W) × 6.50 in (H) (159 × 85 × 165 mm)
- Approximate weight: 12.1 lb (5.5 kg)
- Operating temperature: charge -4°F to 104°F (-20°C to 40°C); discharge 5°F to 122°F (-15°C to 50°C)
- Approvals: UL Recognized, UN2800 non-spillable; consult Power-Sonic for current detail
Typical applications
Specifically, common uses include fire alarm panel backup, large UPS, emergency lighting inverters, and access control standby. Finally, confirm Ah and physical fit against the current Power-Sonic PS-6360 datasheet before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 12.1 lbs |
|---|---|
| Dimensions | 6.25 × 3.35 × 6.93 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
