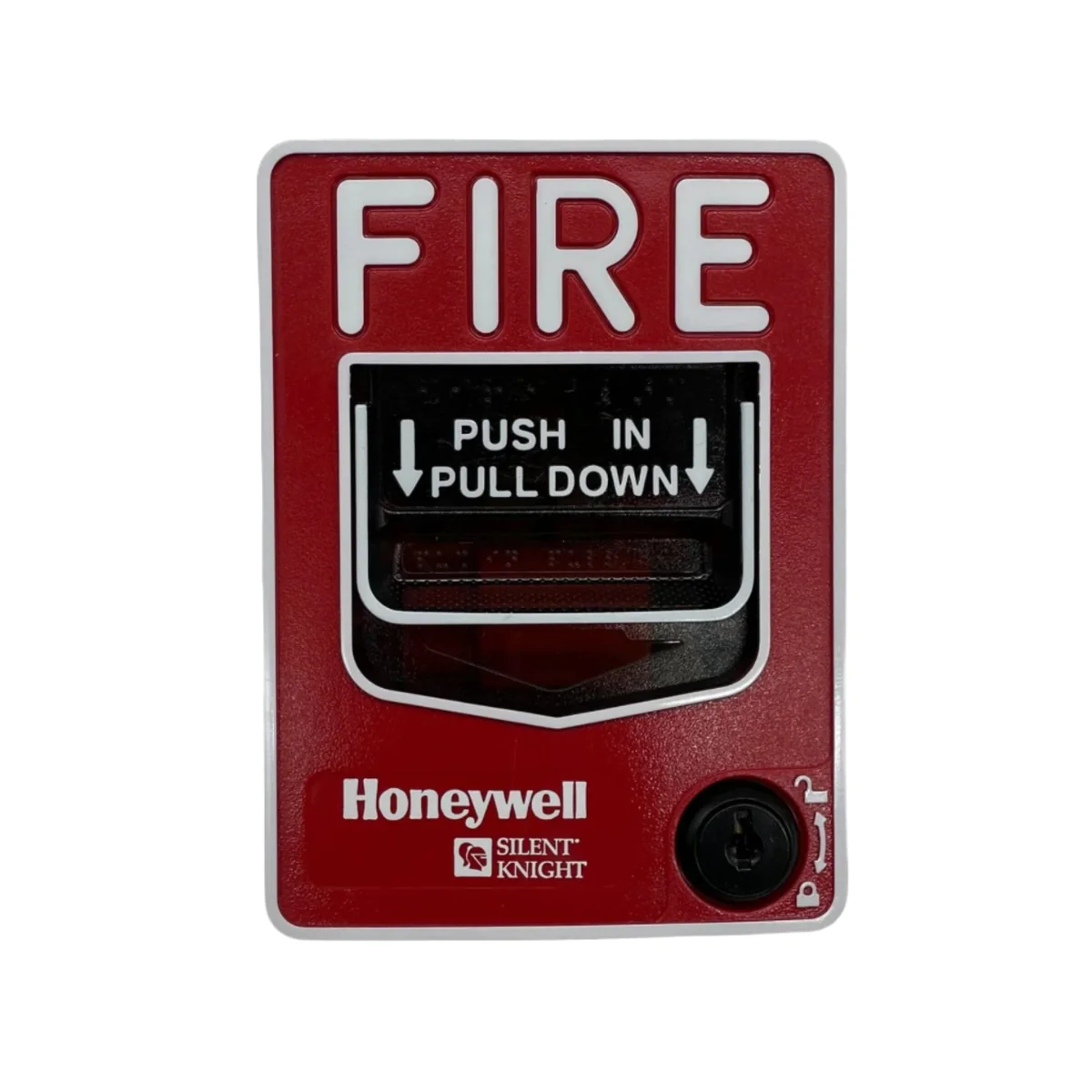

The Silent Knight PS-DALOB is an outdoor, dual-action manual fire alarm pull station. It ships with the SB-I/O backbox and a sealing gasket for weatherproof surface mounting. Therefore, it suits building exteriors, parking structures, and other locations exposed to moisture and dust.
Silent Knight PS-DALOB dual-action operation
First, the dual-action design requires two deliberate steps to signal an alarm. Specifically, the user pushes the handle in, then pulls it down. As a result, accidental activations become far less likely. In addition, operating instructions and Braille text are molded directly into the handle. The station also meets the ADA requirement of a 5-pound maximum pull force.
Construction and wiring
The PS-DALOB is built from durable Lexan for strength in harsh conditions. Moreover, the included weatherproof backbox and gasket protect the contacts outdoors. The station uses screw-terminal connections for straightforward wiring. It also features a key-lock reset for secure, controlled restoration after an alarm. This is a conventional pull station; therefore, it operates as a supervised contact closure on a fire alarm initiating circuit.
Specifications
- Type: dual-action conventional manual pull station, outdoor
- Included: SB-I/O backbox and sealing gasket for surface mounting
- Construction: Lexan, weatherproof for outdoor use
- Connections: screw terminals; key-lock reset
- Dimensions: 4″W x 1-7/16″D x 5-1/2″H
- UL listed; meets ADA 5-lb maximum pull force; Braille on handle
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.14 lbs |
|---|---|
| Dimensions | 10 × 6 × 5 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Pull Station |
