Siemens (RL-HW) Remote lamp-wall (part# 500-033310)

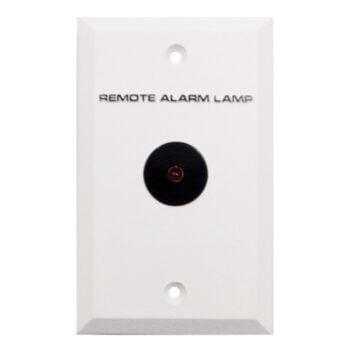

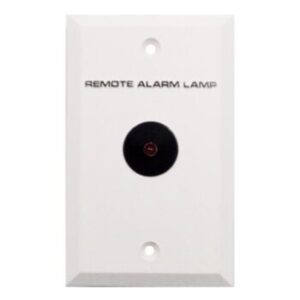

The Siemens RL-HW is a remote alarm lamp for wall mounting. Its Siemens part number is 500-033310.

First, the RL-HW provides a visible alarm-status indicator for an initiating device that you cannot see. For example, smoke detectors in false ceilings, under sub-floors, in unexposed HVAC ducts, in locked vaults, or inside computer consoles often hide from view. Therefore, the remote lamp marks the location so responders can identify which concealed detector activated.

The unit mounts on a standard 4-inch (10.2 cm) octagon outlet box. In addition, the lamp can sit up to 25 feet from the host detector. Furthermore, the wiring uses 14- to 18-gauge 3-conductor cable.

Siemens RL-HW Approvals

• UL Listed
• ULC Listed
• FM Approved
• CSFM (California State Fire Marshal) approved
• NYC Fire Department approved

Notes Before Ordering

The RL-HW is the wall-mount remote lamp. However, Siemens also offers an RL-HC ceiling-mount variant on the same data sheet. Therefore, confirm the mounting orientation before ordering. In addition, this lamp is intended for use with compatible Siemens initiating devices — refer to the detector wiring diagram for the correct remote-lamp connection.

For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
