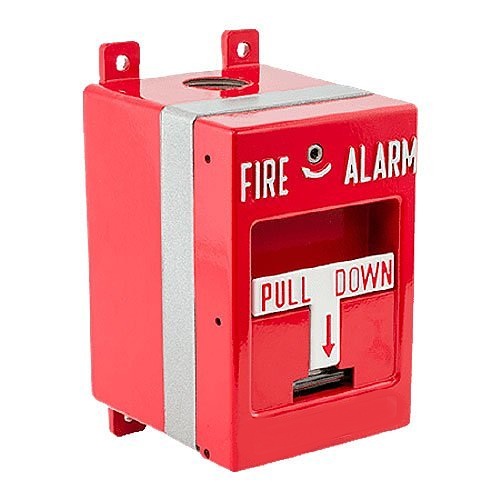

RSG RMS-6T-EXP Explosion Proof Pull Station — DPDT Terminal Connection

The RSG RMS-6T-EXP explosion proof pull station is a DPDT terminal-block manual pull station built for hazardous locations. Specifically, the EXP suffix configures the station for Class I, II, and III hazardous environments. Furthermore, the heavy die-cast metal alloy housing contains potential arcs at the contacts.

First, the user pulls the handle down to activate the station. Then, the handle locks into the alarm position. As a result, the activation remains visible from up to 50 feet.

In addition, the DPDT contacts can wire as normally-open or normally-closed. However, hazardous-location installation requires NEC-compliant conduit and sealing fittings. Therefore, plan conduit runs and sealoffs per Article 500 before specifying.

RSG RMS-6T-EXP Explosion Proof Pull Station Option Detail

The EXP option configures the station for hazardous-location use. Furthermore, the family is UL Listed and Factory Mutual Approved for Class I (Groups B, C, D), Class II (Groups E, F, G), and Class III hazardous environments (per RSG). As a result, the station suits petrochemical plants, refineries, grain handling, and similar atmospheres.

RSG RMS-6T-EXP Key Specifications

• Switch: 10 A snap-action, DPDT (double-pole double-throw)
• Connection: terminal block (screw terminals)
• Housing: high-strength metal die-cast alloy, explosion-proof construction
• Color: red, with raised lettering (other colors available per RSG)
• Operation: single-action — pull handle locks in alarm position, visible at distance
• Hazardous-location rating: UL Listed and Factory Mutual Approved for Class I, Groups B/C/D; Class II, Groups E/F/G; Class III (per RSG family datasheet)
• Meets UL, FM, CSFM, and BSA requirements (per RSG)
• Configured options: Explosion-Proof (EXP) — hazardous-location enclosure

Applications

Designed for hazardous environments including petrochemical plants, oil refineries, and gas processing facilities. In addition, the EXP rating fits grain handling operations and paint spray booths. As a result, the same RMS-family panel-side wiring carries over to hazardous areas.

Order or Get Application Help

Life Safety Consultants has stocked RSG/Aames Security pull stations since 2002. To order the RSG RMS-6T-EXP explosion proof pull station or confirm hazardous-location fit, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
