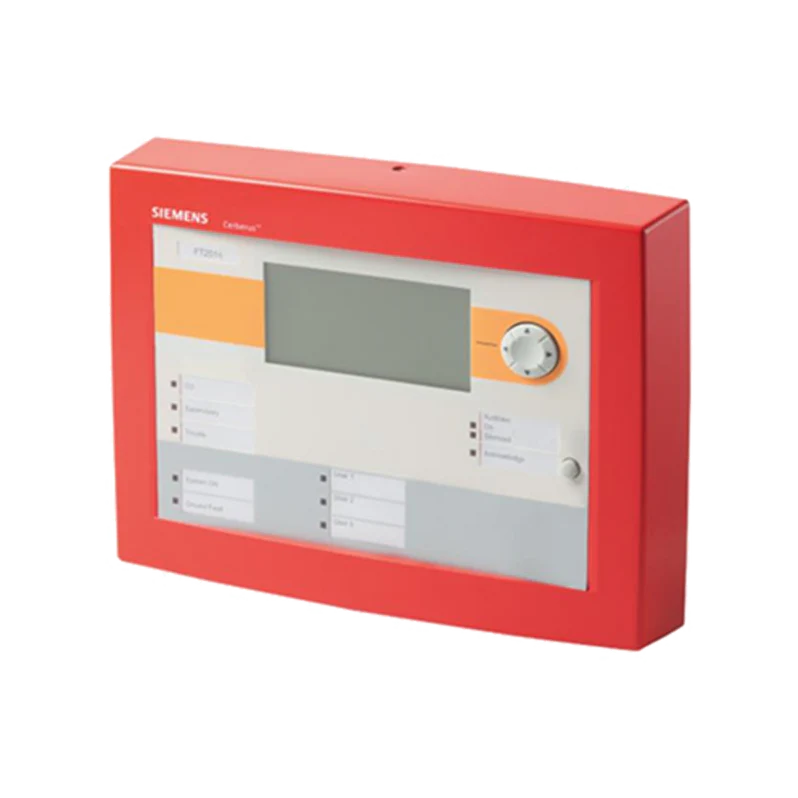

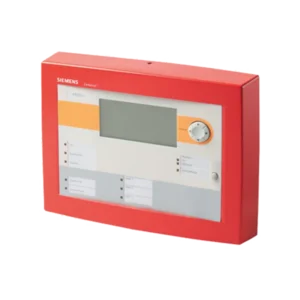

The Siemens FT2014-R3 is a remote display terminal for Cerberus PRO fire alarm systems. It shows the existing status of FC922 (252-point) and FC924 (504-point) Cerberus PRO panels.
First, the FT2014-R3 connects to the FACP through an RS-485 interface. Specifically, FC922 and FC924 panels require the Model FCA2016-U1 RS-485 module. As a result, up to eight remote display terminals can share a single RS-485 loop.
Display and event indicators
A 2″ × 4-3/4″ backlit LCD shows event details in alphanumeric form. Furthermore, the screen scrolls to reveal additional events. The LCD backlight activates on any event or when an operator presses a button.
Separate LEDs light for Alarm, Gas Alarm, Supervisory, and Trouble. Each LED flashes when events are present. Then, the LED switches to steady on acknowledgment. In addition, the terminal includes Power, Ground Fault, and four user-programmable LEDs.
Controls
The FT2014 series has one local-silence button and a navigation key for scrolling events. Also, pressing any button silences the local sounder when an event is active.
Specifications for the Siemens FT2014-R3
- Compatible panels: Cerberus PRO FC922 (252-point) and FC924 (504-point), via FCA2016-U1 RS-485 module
- Display: 2″ × 4-3/4″ backlit LCD, scrollable
- Wiring: Style 4 (Class B) or Style 6 (Class A); built-in transient protection
- RS-485 loop: up to 3,937 ft (1,200 m); maximum 8 devices per loop
- Terminations: screw terminals, 12–22 AWG
- Power: 24 VDC from a Cerberus PRO FACP or UL-Listed 24 VDC supply
- Current: 75 mA normal, 136 mA alarm
- Mounts in a 4″ square electrical box; no flush trim kit required
- Operating environment: indoor dry locations, 32–120 °F (0–49 °C); 93% RH max at 32 °C
- Listings: UL 864 9th Edition Listed; ULC Listed; FM #3010; CSFM #7165-0067:0259; FDNY #6104 Approved
- Part number: S54400-B80-A1
- Source: Siemens FT2014/FT2015 with FCA2016-U1 Cerberus PRO Data Sheet (2017, Rev 4)
Order or get application help
For decades, Life Safety Consultants has supplied genuine Siemens Cerberus PRO remote display terminals. Therefore, to order the Siemens FT2014-R3 or confirm panel compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 16 × 13 × 4 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Replacement Part |
