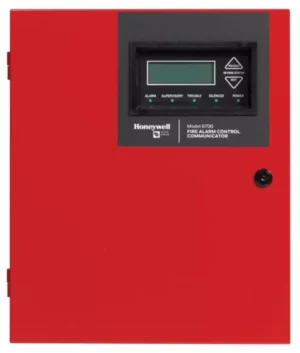

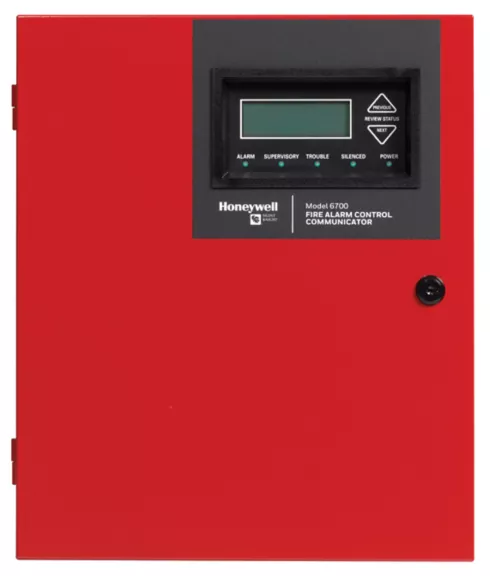

The Silent Knight 6700 is a 100-point addressable fire alarm control panel. Specifically, it suits commercial and institutional buildings. As a result, it delivers intelligent detection, notification, and communication in one panel.
Silent Knight 6700 point capacity
The 6700 includes one built-in signaling line circuit (SLC). Specifically, the loop supports 50 sensors plus 50 modules using System Sensor (SK) protocol. Alternatively, it supports 50 Hochiki (SD) devices. Therefore, the panel reaches up to 100 addressable points.
Notification and expansion
The panel provides two programmable Flexput circuits. In addition, each Flexput serves as a notification circuit or as auxiliary power. Furthermore, the SBUS lets installers add annunciators and other peripherals.
A built-in USB port simplifies programming. Also, the panel includes dual-line POTS and IP communications on board. Optional cellular communications are available as well.
Networking
The 6700 can link with other panels for larger sites. Specifically, a single communication and annunciation link connects up to 17 panels. Installers can run that link over copper or fiber optic cable.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 16.02 lbs |
|---|---|
| Dimensions | 5 × 17 × 19 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Module |
