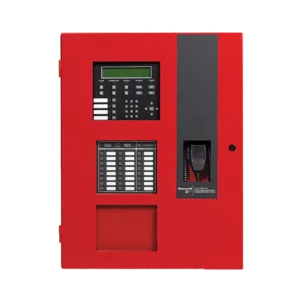

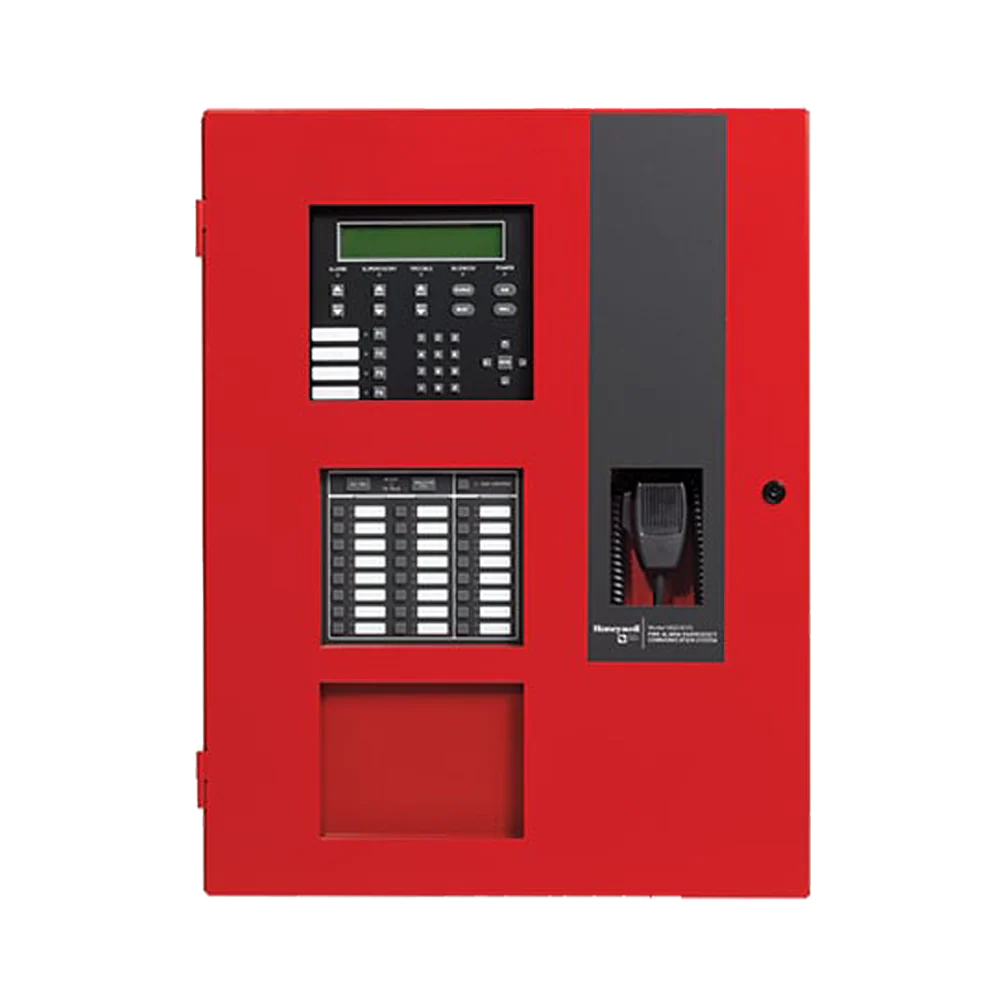

The Silent Knight 6820EVS is an intelligent addressable fire alarm control panel with a built-in Emergency Voice System (EVS). First, it combines fire detection and live voice evacuation in one platform. As a result, it serves as a direct replacement for the 5820XL-EVS panel.
Silent Knight 6820EVS capacity and detection
The panel includes one built-in signaling line circuit (SLC). This SLC supports 159 SK detectors plus 159 SK modules, or 127 SD-protocol devices. In addition, you can add SLC loops to reach 1110 SK points or 635 SD points per panel. Therefore, the 6820EVS scales from mid-size buildings to large campuses.
Control and notification
Six onboard Flexput circuits work as notification outputs or auxiliary power. The panel also provides a Form-C trouble relay and two programmable Form-C relays. Furthermore, drift compensation, a pretrouble maintenance alert, and a built-in sensor test help meet NFPA 72 calibration requirements.
Emergency voice and networking
An onboard supervised microphone supports live announcements. All-call and non-active call buttons quickly select active or inactive output groups. Moreover, a common communication link connects up to 17 panels over copper or fiber. The 6820EVS is listed to UL 864 and UL 2572 for mass notification.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 48 lbs |
|---|---|
| Dimensions | 32 × 25 × 7 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Replacement Part |
